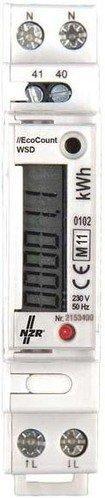

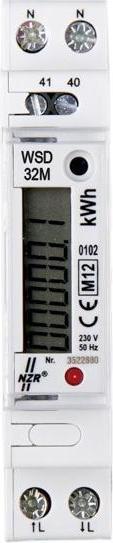

EcoCount WSD 32 AC Meter, Pulse Output, MID, 0.25-532 A, 1x 230 V. Electronic AC meter for measuring positive active energy with LC display. The meters of the EcoCount WSD series are designed for measuring active energy. They are intended for DIN rail mounting and are only 18 mm wide (1 TE). The meters feature a 6-digit LC display. Suitable for 2-wire networks, accuracy class according to EN 50470-1 and -3, LC display, tariff register, MID compliant for billing purposes, smallest design 1 TE wide, display of reading 5.1, rolling instantaneous values, WSD 32 1x 230 V, 0.25-532 A, pulse output, maximum cable terminals mm², additional terminals maximum 2.5 mm. Technical specifications: Voltage 1x 230 V, Current 0.25-532 A, Frequency 50 Hz, Counter 5.1, Accuracy EN 50470-1 and -3 Class B, Power consumption 0.4 W, Temperature range -25 °C to 55 °C, Protection class IP 20, Weight approx. 0.1 kg, Dimensions W H D 1 TE 17.5 mm x 95.6 mm x 66.2 mm. EcoCount WSD 32 MID.
measurement module | Kilowatt hours |
Maximum current | 32 A |
Energy meter type | Energy meter |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Item number | 20025507 |
Manufacturer | NZR |
Category | Energy monitors |
Manufacturer no. | 30220116 |
Release date | 16.3.2022 |
Energy meter type | Energy meter |
Mounting type | Top-hat rail |
measurement module | Kilowatt hours |
Maximum current | 32 A |
Nominal voltage | 230 V |
Display type | Digital |
Tariff execution | Single tariff |
Pulse output | Electrical |
Polar type | 1-phase |
Accuracy class | B |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Height | 180 mm |
Length | 300 mm |
Width | 200 mm |
Length | 10 cm |
Width | 8 cm |
Height | 3 cm |
Weight | 5 g |
