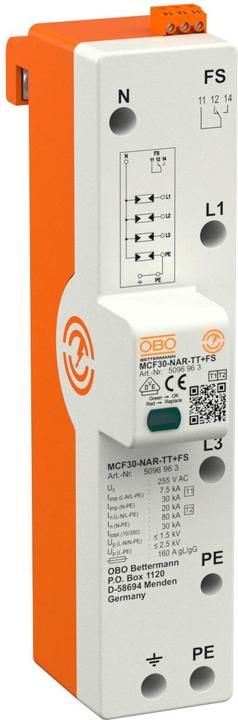

OBO Bettermann LightningController Rail MCF30-NAR-TT+FS

Manufacturer: OBO Bettermann
Description: LightningController Rail 3-pole with NPE+FS 255V
Type: MCF30-NAR-TT+FS
Network type TN: Yes
Network type TN-C-S: Yes
Network type TN-S: Yes
Network type TT: Yes
Lightning impulse current (10/350 µs): 7.5 kA
Nominal discharge current (8/20): 20 kA
Maximum AC voltage: 255 V
Nominal AC voltage: 230 V
Protection level: 1.5 kV
Protection level L-N: 1.5 kV
Follow current extinguishing capability: 0.1 kA
Mounting type: Busbar
Size: Other
Max. conductor cross-section, rigid: 35 mm²
Device signaling: Optical
Protection class (IP): IP20

Further details:
Combination surge protector type 1+2 for mounting on 40 mm busbars, for TN-S and TT systems.
Protection level = 1.5 kV to protect end devices.
Lightning potential equalization according to VDE 0185-305 (IEC 62305).
Lightning current carrying capacity up to 30 kA (10/350) 3+NPE.
Meets the requirements of VDE 0100-534 (IEC 60364-5-53).
Follow current discharge up to 50 kA and maximum fuse rating up to 160 A gL/g.
Fuse up to 160 A gL/gG.
Spark gaps for use in the pre-meter area according to VDE-AR-N 4100.
With potential-free switching contact for remote signaling.

Application: Buildings with overhead line supply.
EAN: 4012196585571.
