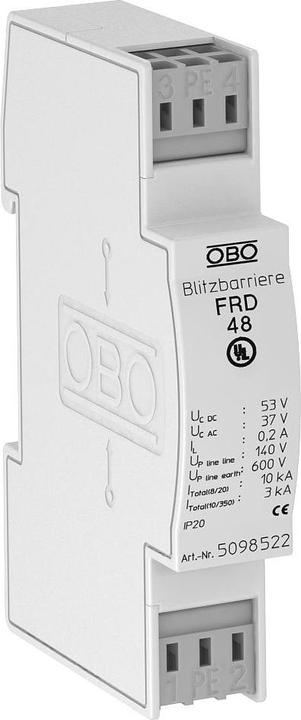

The lightning barrier with decoupling resistor 5098522 from OBO Bettermann is a highly advanced surge protection device specifically designed for use in measurement, control, and regulation technology. This product offers both medium and fine protection and is suitable for double wire systems in standard configuration. The two-stage protection circuit ensures effective safeguarding against surges, while the installation-friendly, screwless connection terminals allow for easy installation. With a compact 17.5 mm pitch, the lightning barrier is ideal for use in standard distribution enclosures and can be universally mounted on a 35 mm DIN rail. The ohmic decoupling in the longitudinal branch contributes to improved safety and reliability, making it a valuable component in any electrical system.

• Two-stage protection circuit for effective surge protection
• Installation-friendly, screwless connection terminals

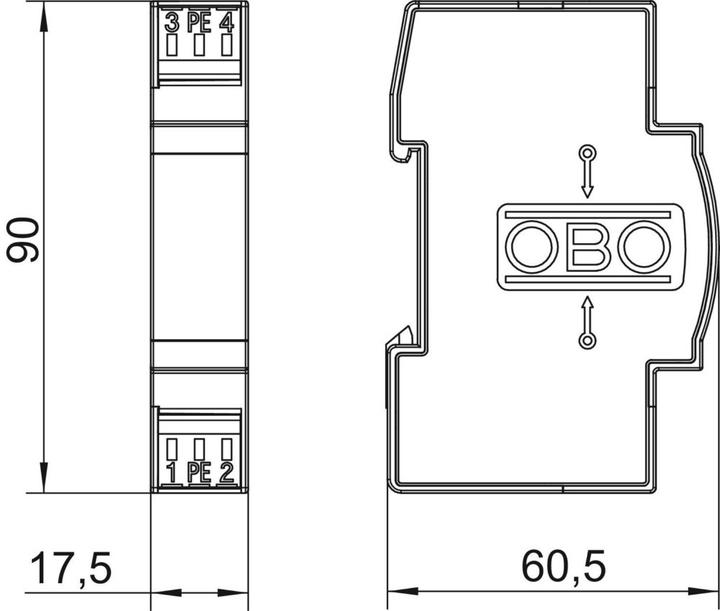

• Compact design with a 17.5 mm pitch
• Universally applicable on a 35 mm DIN rail
• Ohmic decoupling in the longitudinal branch for increased safety.
