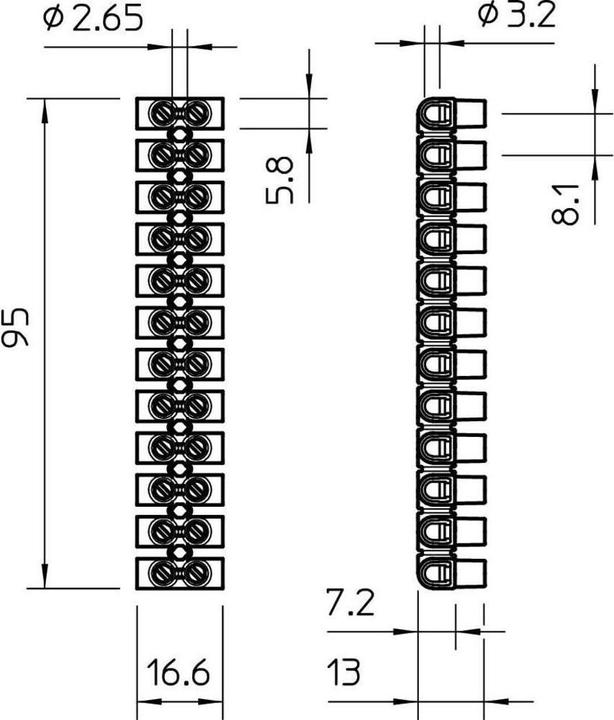

OBO Bettermann OBO 72/CE-SW 12x4qmm series terminal block

Price in EUR including VAT
Save EUR0,92
Ratings
BrandMore from OBO Bettermann
Delivered between Tue, 2.6. and Fri, 5.6.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Suitable for cable cross-section2

Product details

Steel terminals with galvanised steel screws and 12-pole strips that can be separated into individual terminals by "twist'n'pull". The screws are turned up and captive.

Technical data:

  • Explosion-tested version "Ex e": no
  • Electrical connection 1 version: screw connection
  • Electrical connection 2 version: screw connection
  • Number of terminals per pole: 2
  • Mounting type: direct mounting
  • Insulator material: thermoplastic
  • Width/spacing: 8 mm
  • Height with lowest mounting type: 13 mm
  • Length: 93 mm
  • End plate required: no
  • Rated current: 32A
  • Rated current - rounded: 32A
  • Content: 10 pcs.
  • Dimensions (L x W): 93 mm x 16.6 mm
  • Product part number: 2056089
  • Type: 72 CE SW
  • Manufacturer colour: black
  • Length: 93 mm
  • Width: 16.6 mm
  • Connection: screws
  • Rated voltage: 450V
  • Cross-section flexible (max.): 4 mm²
  • Cross-section flexible (min.): 4 mm²
  • Cross-section rigid (max.): 4 mm²
  • Cross-section rigid (min.): 4 mm²
  • Number of poles: 12
  • RM: 16.6 mm
  • Temperature range: -5 to +80°C
  • Product type: modular chandelier terminal block.

Key specifications

Colour
Black
Suitable for cable cross-section
4 mm²
number of poles
12
Items per sales unit
10x

General information

Item number
32175237
Manufacturer
OBO Bettermann
Category
Cable joints
Manufacturer No.
2056089
Release date
16.11.2022

Colour

Exact colour description
Black
Colour
Black

Material

Material
Galvanized, Steel, Thermoplastic resin
Material group
Metal, Plastic

Cable connection Properties

Suitable for cable cross-section
4 mm²
number of poles
12

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
0,13 kg
Climate contribution
EUR 0,12

Scope of delivery

Scope of delivery
10 pieces
Items per sales unit
10x

Product dimensions

Length
95 mm
Width
16.60 mm
Height
13 mm

Legal Notice

Product Safety

Package dimensions

Length
12.30 cm
Width
3.50 cm
Height
2.20 cm
Weight
21 g
