OBO Bettermann OBO SurgeController V20 three-pole N

Price in EUR including VAT
Delivered between Fri, 16.5. and Tue, 20.5.
10 items in stock at third-party supplier
Supplied by
free shipping

Product details

The V20 surge arrester made of halogen-free plastic is suitable for surge protection potential equalization according to VDE 0100-443 (IEC 60364-4-44). A dynamic disconnection device and optical status indication characterize the modular plug-in arresters. The FS with NPE variant offers a highly resilient spark gap between the neutral and protective conductor, as well as a potential-free changeover contact that enables remote signaling. The SurgeController is particularly suitable for potential equalization in main and sub-distributions, depending on the type, in the areas of TN and TT networks. Thanks to the high-performance varistors, the discharge capacity is up to 40 kA (8/20) per pole. The vibration-proof locking mechanism and the voltage and type coding ensure safety and prevent confusion between upper and lower parts. The wedge-shaped design of the contacts allows for easy insertion and even easier removal of the upper parts.

Key specifications

Surge protection type
Surge arrester
Number of conductors
3 x
mounting style
Top-hat rail
Test class
Type 2
Item number
13051647

General information

Manufacturer
OBO Bettermann
Category
Surge protection
Manufacturer no.
5095333
Release date
7.4.2020
External links

Surge protection properties

Surge protection type
Surge arrester
Number of conductors
3 x
Lightning impulse current
40 kA
Rated leakage surge current
20 kA
Nominal voltage
230 V
Protection level
1.30 V
mounting style
Top-hat rail
Test class
Type 2
Protection type (IP code)
IP20

Origin

Country of origin
Hungary

Voluntary climate contribution

CO₂-Emission
Climate contribution

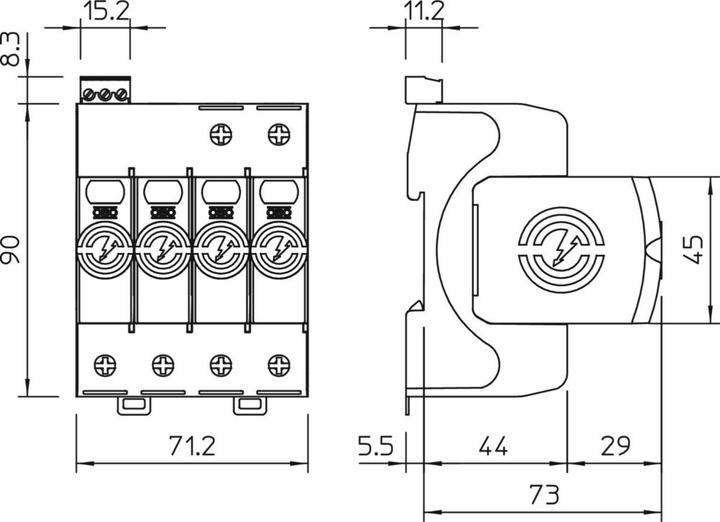

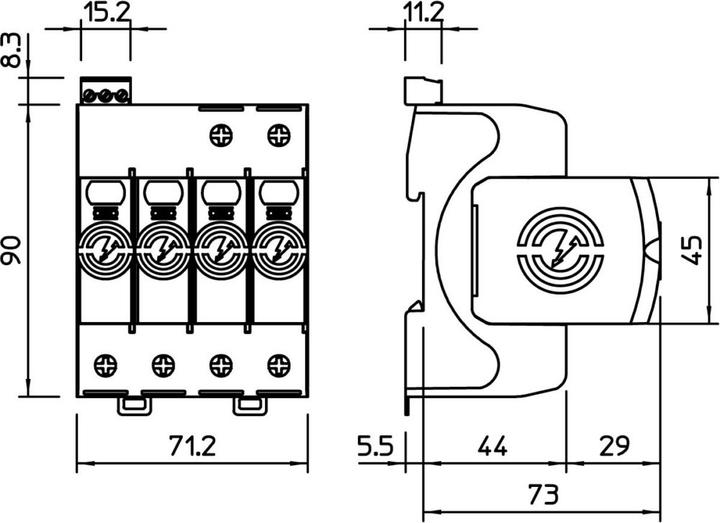

Product dimensions

Width
0.07 m
Height
0.09 m
