OBO Bettermann Overvoltage protection module phases
Price in EUR including VAT
Delivered between Tue, 26.5. and Wed, 10.6.
free shipping
Product details

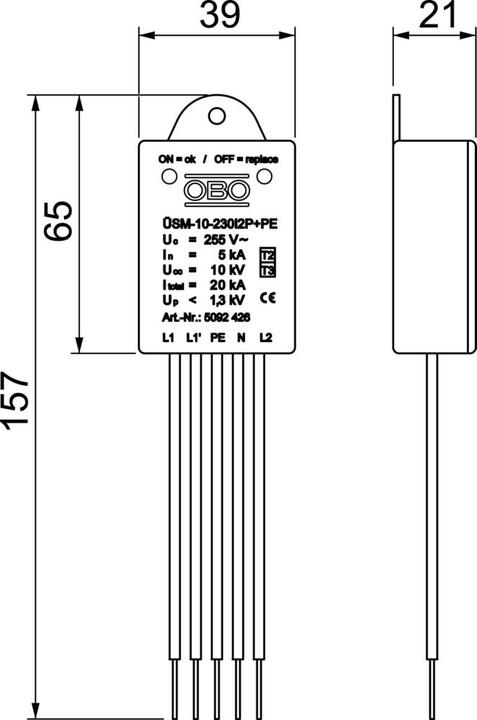

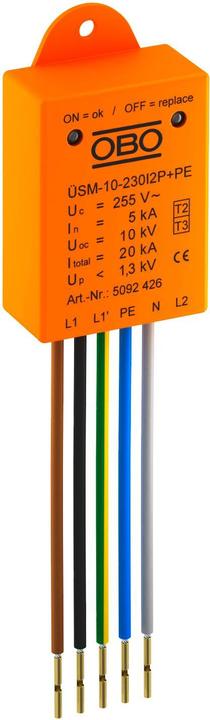

Surge protection module ÜSM-10-230I, Type 2+3 according to EN 61643-11 for 230/400V networks. Designed to protect electronic devices such as LED drivers. With a compact size for installation in the mast connection box and in the luminaire head, as well as in front of the electronic driver. Protection level below 1300V and with a maximum discharge capacity of 10kA, suitable for all lighting systems.
Surge protection type | Surge arrester |
Number of conductors | 2x |
Test class | Type 2, Type 3 |
Item number | 13048552 |
Manufacturer | OBO Bettermann |
Category | Surge protection |
Manufacturer no. | 5092426 |
Release date | 7.4.2020 |
Surge protection type | Surge arrester |
Number of conductors | 2x |
Lightning impulse current | 10 kA |
Nominal voltage | 230 V |
Protection level | 1300 V |
Test class | Type 2, Type 3 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 29,48 kg |
Climate contribution | EUR 0,74 |
Width | 0.04 m |
Height | 0.07 m |
Product Safety |
