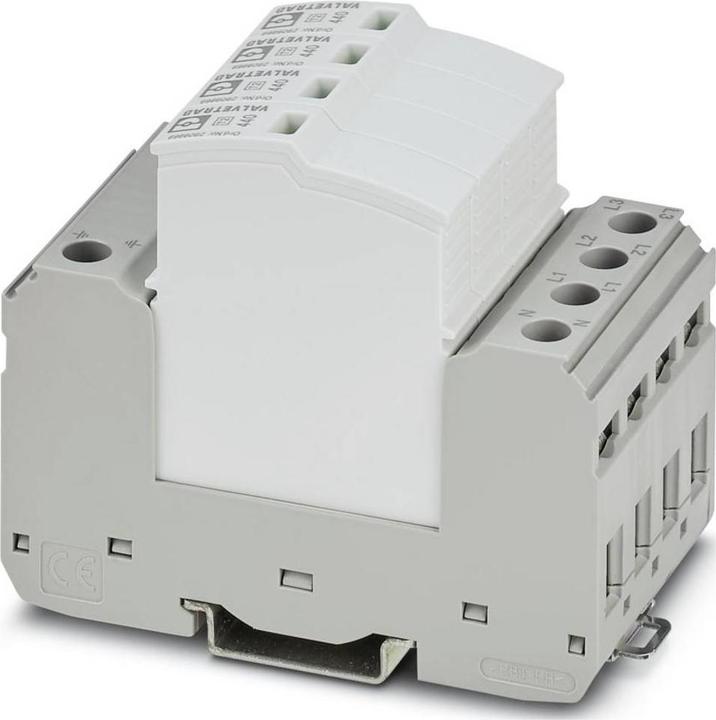

The surge arrester type 1076468 from Phoenix offers effective protection for 3-phase power supply networks. This device is specifically designed for systems with a separate neutral conductor (N) and protective conductor (PE) and meets the requirements of test class Type 2. With a rated current of 40 A and a short-circuit disconnection capacity of up to 40 kA, it ensures reliable protection against surges. Installation is straightforward on a DIN rail, making it easy to integrate into various electrical systems. The device is equipped with a remote signaling contact that allows for monitoring and alerting in the event of surge occurrences. The protection class IP20 ensures that the device can be used in dry indoor environments without being at risk from dust or contact.

• Type 2 surge arrester for 3-phase systems
• Rated current of 40 A and short-circuit disconnection capacity of 40 kA
• Easy installation on DIN rail
• Equipped with remote signaling contact for monitoring
• Protection class IP20 for use in dry indoor environments.
