Product details

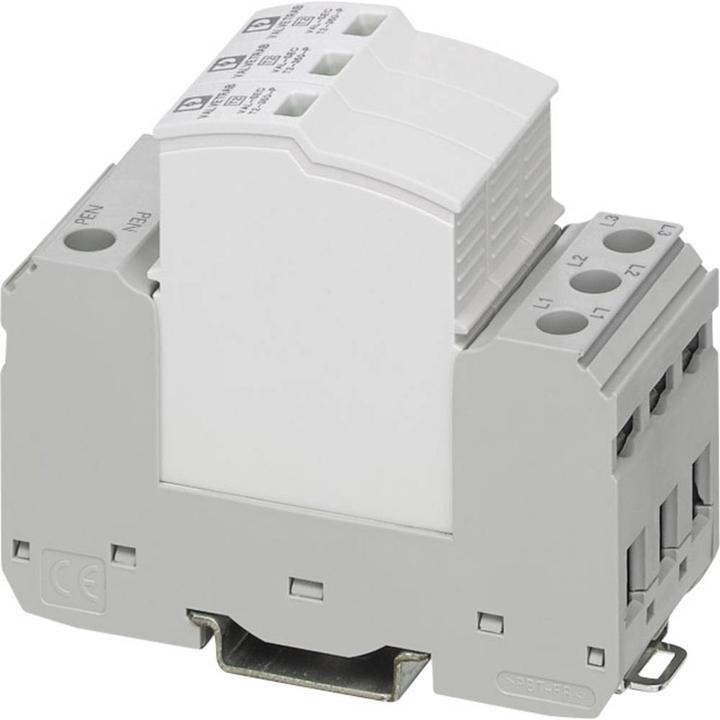

Pluggable lightning current and surge arrester combination (type 1+2/Class I+II arrester) consisting of protective plugs and base element for DIN rail mounting. Protection circuit for 3-phase power supply networks, with combined N and PE in one conductor (5-wire system: L1, L2, L3, N, PE). Equipment: Enclosed spark gaps with ignition mechanism for triggering the response voltage. Varistors connected directly in parallel. Additional pluggable sum current spark gap between N and PE. Function monitoring for Class I and Class II arresters. Disconnection of the individual L-N protection paths in the event of a fault. Operating current-free (mechanical) optical fault indication and remote fault indication in the L-N paths for Class I and Class II arresters via a common potential-free changeover contact. Basic element can be mounted with variable connections (outer conductor from above or below). Protective plugs can be inserted into the base element rotated by 180° (plug inscription legible). Mechanical coding of base element and plug prevents incorrect insertion of connectors. Labelling option for protective plugs and terminals. Biconnect terminals for connecting round conductors and wiring bridges.

Key specifications

Test class
Type 2
Item number
8460631

General information

Manufacturer
Phoenix Contact
Category
Surge protection
Manufacturer no.
2905344
Release date
21.4.2018
External links

Colour

Colour
Grey
Exact colour description
RAL 7035 Light greyTraffic grey

Surge protection properties

Lightning impulse current
40 kA
Rated leakage surge current
20 kA
Nominal voltage
240 V
Protection level
1.50 V
Test class
Type 2

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
0.07 m
Width
0.04 m
Height
0.09 m
