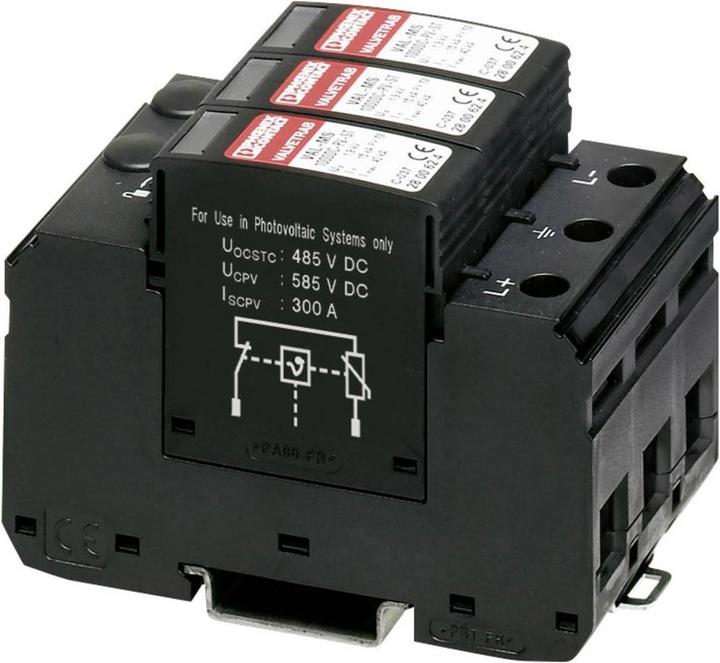

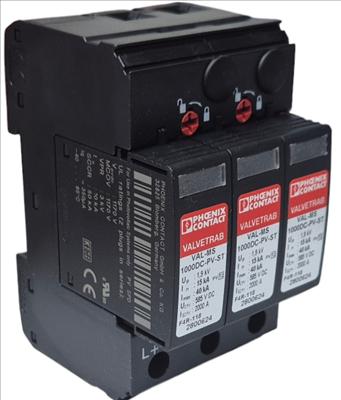

The surge protection device from Phoenix Contact is a highly advanced unit specifically designed for use in 2-pole, isolated DC systems, such as those found in photovoltaic installations. With a maximum rated voltage of 1000 VDC, this surge arrester provides effective protection against lightning currents and overvoltages that can jeopardize the safety and functionality of electrical systems. The device is suitable for mounting on DIN rails and features a 3-pole base element that allows for easy installation and integration into existing systems. The pluggable, temperature-monitored protective elements ensure reliable monitoring of the device's condition, while the status indication at each plug provides immediate feedback on the operational status of the surge protection. With a lightning impulse current of up to 15 kA and a testing class of Type 2, this product is a robust solution for the protection of PV DC systems.

• Suitable for 2-pole, isolated DC systems up to 1000 VDC
• 3-pole base element with pluggable, temperature-monitored protective elements
• Status indication at each plug for easy monitoring
• Lightning impulse current of 15 kA for effective protection
• Testing class Type 2 for high reliability.
