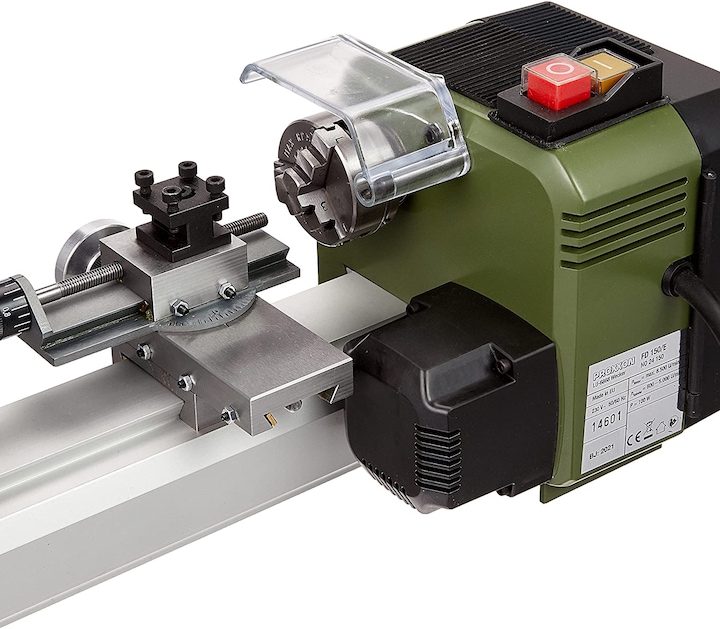

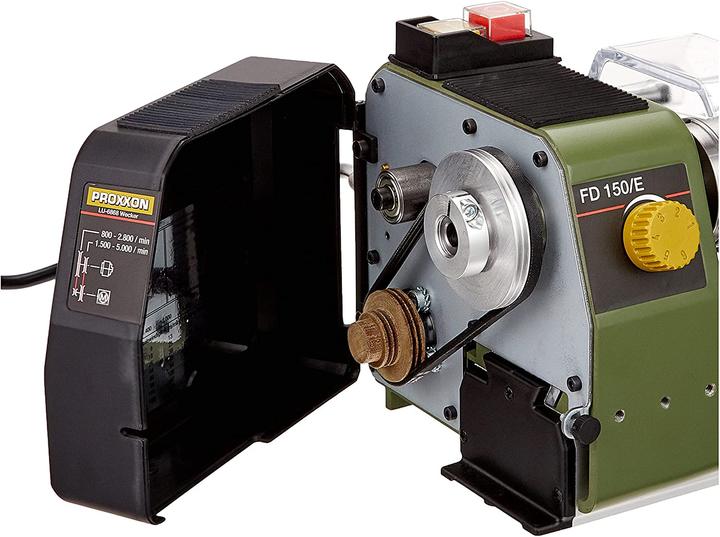

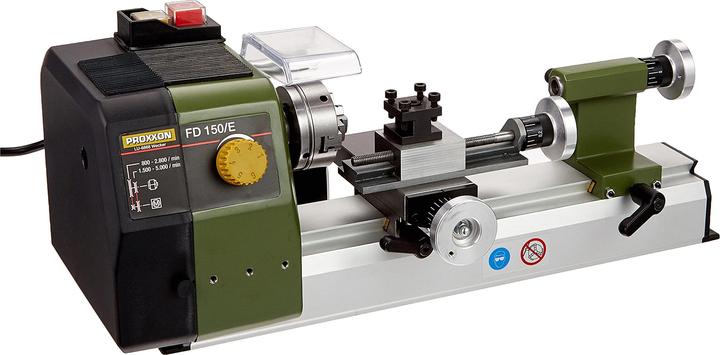

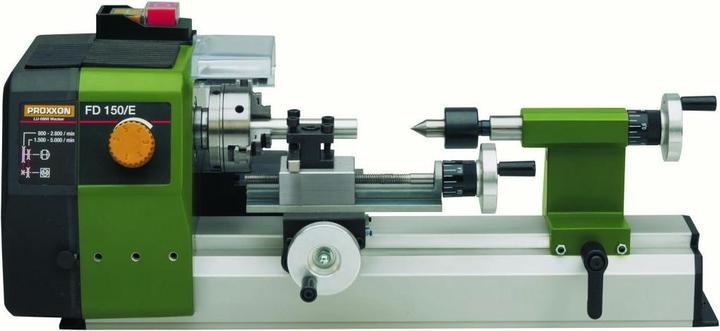

2-stage belt drive and additional electronic control enable spindle speeds of up to 5,000 rpm. The right cutting speed even for the smallest parts. For facing, longitudinal turning, unscrewing, taper turning, tapping and drilling. Complete with 3-jaw chuck and accompanying grain tip. Centre distance 150 mm. Centre height 55 mm. Centre height above support 33 mm. Machine bed: With dovetail guide made of aluminium continuous casting. Headstock: Made of die-cast aluminium. With quiet DC special motor, 2-stage belt drive and additional speed control: for high pulling power at lower speeds for larger workpieces and for the correct cutting speed even for the smallest parts. Relay switch with emergency stop function and restart protection. Precision-beared main spindle with through 8.5 mm bore. Fit on chuck side for standard collets type ER 11. Three-jaw chuck: Centrically clamping (inner jaws 1 - 20 mm, outer jaws 20 - 60 mm). Tailstock: Made of die-cast aluminium. With quill and accompanying grain tip (fit MK 0/short). Support: Is moved on the bed manually and clamped with a lever. Turnable steel holder for turning steels 6 x 6 mm. The machining is carried out with top slides (60 mm travel) and cross slides (40 mm travel). By adjusting the angle of the top slide, it is possible to turn cones up to +/- 45°. Setting wheels: With scale ring adjustable to 0 (1 graduation = 0.05 mm, 1 revolution = 1 mm). Other technical data: 230 Volt. 50/60 Hz. Centre distance 150 mm. Centre height 55 mm. Centre height above support 33 mm. Adjustment range face slide (X) 40 mm, top slide (Z) 60 mm. Steel holder for turning steels 6 x 6 mm. Spindle aperture 8.5 mm. 2-stage belt drive with speed control: stage 1 = 800 - 2,800/min. Level 2 = 1.500 - 5.000/min. Size approx. 360 x 150 x 150 mm. Weight approx. 4.5 kg. Built according to protection class 1.
