PULS DIN-rail power supply unit (DIN-rail

Ratings
Currently out of stock

Product details

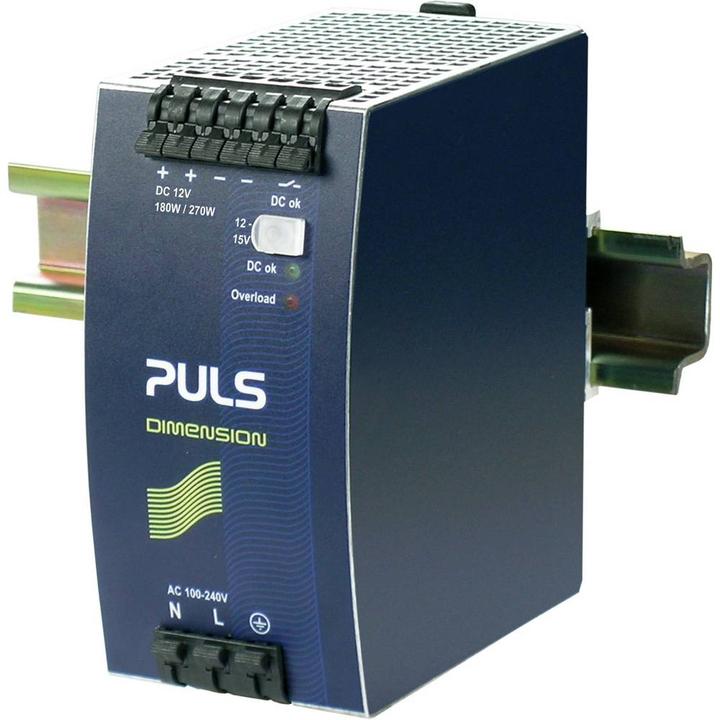

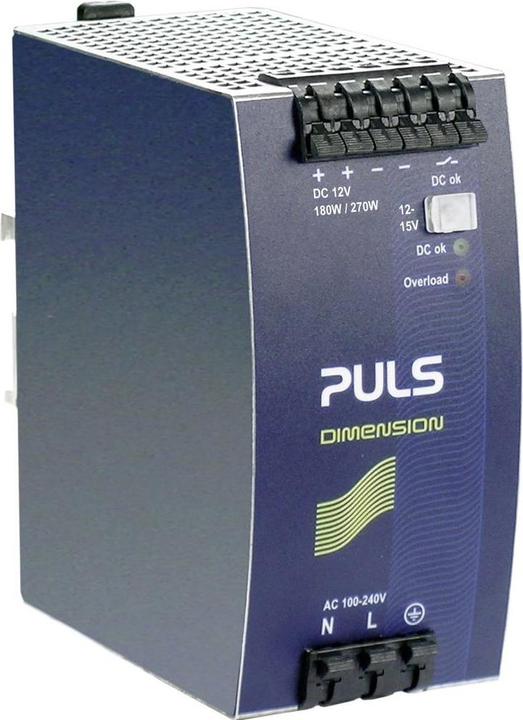

The DIMENSION QS10.121 DIN rail power supply from PULS is a highly developed system power supply designed for use in industrial applications. With an output voltage of 12 V/DC and a maximum output current of 15 A, this power supply provides a power output of 180 W. It is suitable for mounting on DIN rails and features a wide input voltage range of 85 to 276 V/AC and 88 to 187.5 V/DC. The device is equipped with spring-loaded terminals that ensure a simple and secure connection. The high efficiency of up to 95% and active power factor correction (PFC) contribute to energy efficiency. Additionally, the power supply offers a 50% power reserve, referred to as BonusPower®, and is designed for operating temperatures of up to +60 °C. The comprehensive certification package and minimal inrush current peaks make it a reliable choice for demanding applications.

  • Input voltage range of 85 - 276 V/AC and 88 - 187.5 V/DC
  • Efficiency of up to 95%
  • Active PFC for improved energy efficiency
  • 50% power reserve (BonusPower®)
  • Operating temperature range of -25 °C to +60 °C.

Key specifications

Nominal current
15 A
Nominal voltage
230 V
Number of outlets
1 x
Protection type (IP code)
IP20
Item number
8421727

General information

Manufacturer
PULS
Category
Mobile power distributors
Manufacturer no.
QS10.121
Release date
20.4.2018
External links
Manufacturer's site (de)

Mobile power distributor features

Nominal current
15 A
Nominal voltage
230 V
Number of outlets
1 x
mounting type
DIN rail mounting
Power
0.18 kW
input voltage
100 - 240 V
output voltage
12 V
number of poles
1
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
DIN rail power supply unit

Product dimensions

Width
60 mm
Length
152 mm
Height
124 mm
