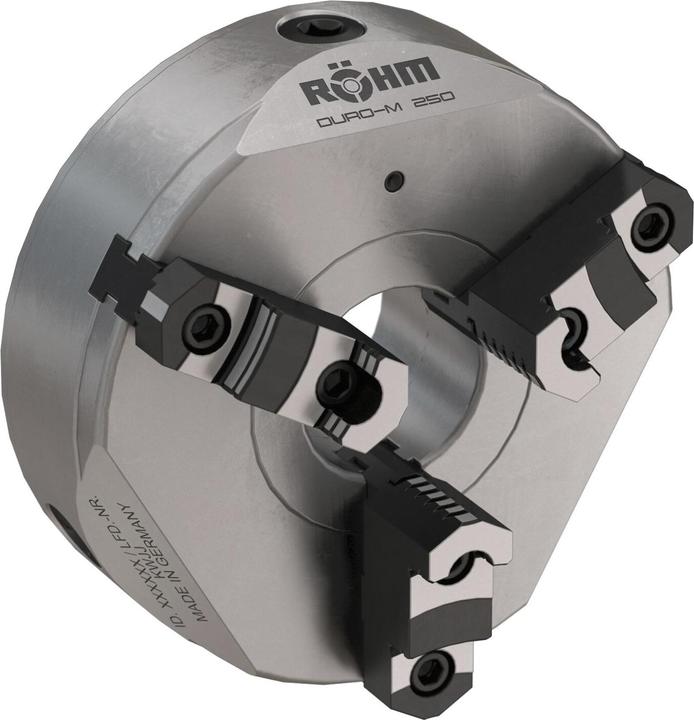

The DURO-M is a manually operated chuck with a flat spiral and through hole. It is primarily used on conventional lathes for the machining of turned parts.

Technical features:

• Chuck body (as well as all other components) made of steel
• Centric clamping via flat spiral
• Flat spiral forged in a die and heat-treated, thread flanks ground on both sides
• Jaws ground for concentricity in the chuck
• Factory-determined zero play as accuracy drive

The maximum permissible speed is set so that at maximum clamping force and when using the heaviest associated jaws, one-third of the clamping force remains as residual clamping force. The jaws must not protrude beyond the outer diameter of the chuck. The chucks must be in perfect condition. Furthermore, the regulations according to DIN 6386 Part 1 apply.

Clamping force according to DIN 6350: The clamping force is the sum of all jaw forces acting radially on the workpiece while stationary. The specified clamping forces are guideline values. They apply to chucks in perfect condition that are lubricated with Röhm grease F80.

Scope of delivery: Chuck, chuck key, jaws

Application area:
Conventional clamping horizontal and vertical lathes as well as milling machines, rotary tables, and dividing heads. Mainly in single or small batch production or repair workshops. Clamping of rotationally symmetrical parts for turning and milling operations.

Advantages:

• Jaws are generally blued
• Minimal interference contour
• High force transmission
• Drip edge for coolant

Mounting (mm): 106.4
Max speed (r/min): 4000
Short taper mounting: 6
Through hole (mm): 55
Jaw length (mm): 79.5
Number of jaws: 3
Manufacturer: RÖHM
ID: 185525
Height (mm): 74.5
Clamping force (kN): 55
Torque (N·m): 140
Type: 200/3
Content summary (ST): 1.
