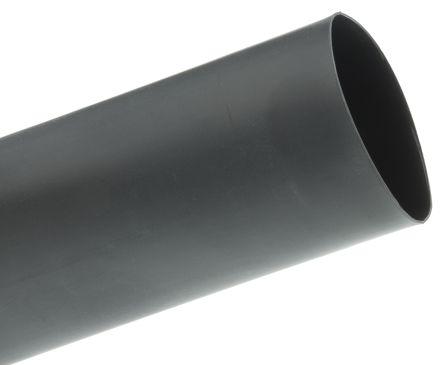

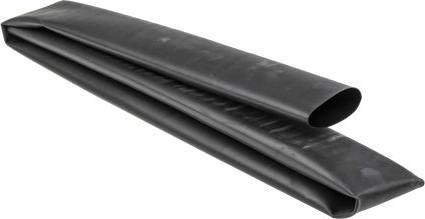

Tube diameter: 40 mm
Shrink diameter: 13 mm
Color: Black
Sleeve type: Heat shrinkable
Adhesive coated: Yes
Shrink ratio: 3:1
Tube length: 1.2 m
Material: Polyolefin
Flame retardant: Yes
Halogen-free: No

AMS-DTL-23053/4 Class 3, UL224, 125 °C, 600 V E75077 CSA C22.2 No. 198.1. With adhesive coating - flame retardant 3:1. Flexible, flame-retardant heat shrink tubing with an internally bonded adhesive layer for permanent encapsulation as protection against moisture. The heat shrink tubing can be used in a variety of applications, such as electrical wire splices, cable jackets, wire branching, strain relief, and protective sleeves for electrical components. The tubing is made from irradiated polyolefin material and features a special adhesive coating on the inner wall that melts when heated and is pressed into the joints of the component due to the shrinkage of the outer wall. After cooling, the tubing becomes a semi-flexible, highly homogeneous encapsulation material with controlled wall thickness. Features and benefits: 3:1 shrink ratio, adhesive coated, flame retardant, available in a range of colors and sizes, length: 1.2 m except transparent: 300 mm lengths.
