Actuator type: Roller lever
Contact number and position: DPST
Contact configuration: Normally open/normally closed contact
Protection class: IP67
Current max: 5 A
Body material: Zinc die-cast alloy, thermoplastic
AC voltage max: 240V
DC voltage max: 250V
Connection type: Cable
Contact type: Snap
Connection type: Wire connection
Length: 31.5mm
Width: 92mm
Mounting position: Vertical

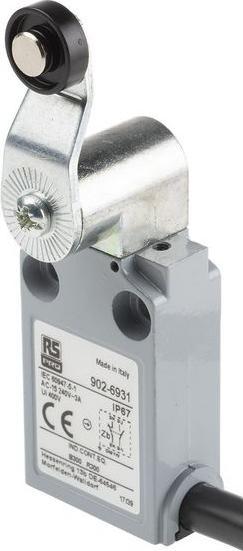

IEC 947-5-1, EN 60947-5-1. Metal enclosure: Order numbers 902-6922, 902-6913, 902-6925, 902-6929, 902-6938, 902-6931, 902-6935. Plastic enclosure: Order numbers 902-6944, 902-6947, 902-6941, 902-6950. RS limit switch IP67 EM/EP series. Easy-to-use electromechanical limit switches offer special qualities and specially designed detection devices with features such as presence/absence, positioning and end position, passing objects, and counting. EP series limit switches are made of thermoplastic material, and EM series limit switches are made of zinc alloy sealed with epoxy resin at the base of the housing according to IP67 protection. Visible operation, possibility to change high currents - 5 A conventional thermal current, electrically separated contacts, precise operating points - consistency, insensitive to electromagnetic interference. Choice of actuating heads: simple plunger, roller plunger, roller lever. Metal enclosures to IP67, all are pre-wired. Plastic enclosures are double insulated. Limit switches with plastic and metal housing according to IP67.
