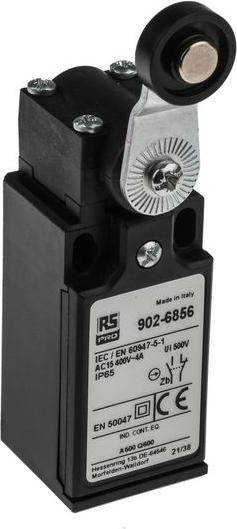

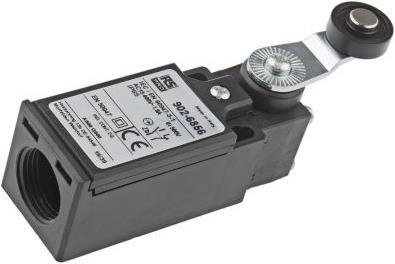

Actuator type: Roller lever
Contact number and position: DPST
Contact configuration: Normally open/normally closed contact
Protection class: IP65
Current max: 10 A
Housing material: Thermoplastic fiberglass
AC voltage max: 400 V
DC voltage max: 250 V
Connection type: Cable
Contact type: Snap
Connection type: Screw fixing
Length: 30.3 mm
Width: 106 mm
Actuation force: 0.1 N

The RS limit switch series M20 AP features easy-to-use electromechanical limit switches that offer special qualities and specially designed detection devices. These devices include features such as presence/absence detection, positioning, end position detection, passing objects, and counting. Made of reinforced UL-VO thermoplastic fiberglass, these limit switches provide double insulation and IP65 protection. They have visible operation, the ability to change high currents (10 A conventional thermal current), electrically isolated contacts, precise operating points for consistency, and are insensitive to electromagnetic interference. A choice of actuating heads is available, including single plunger, roller plunger, and roller lever. The dimensions are standardized in accordance with EN 50047 and EN 50041, and the plastic housing offers IP65 protection with double insulation.
