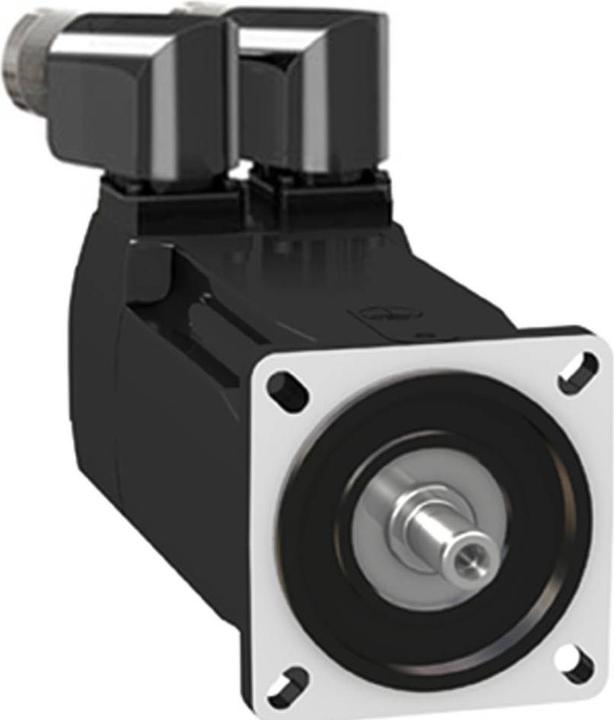

BMH servo motor from the Lexium 32 servo drive series. The BMH series of three-phase AC servo motors features a medium rotor inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, it achieves a very high power density in a compact design. This servo has a nominal continuous stall torque of 2.48 Nm and reaches a peak torque of 7.44 Nm. Its rated speed can be up to 5000 rpm, depending on the supply voltage. It provides a voltage-dependent rated power of up to 1080 W. The built-in encoder is a multiturn type with 16 periods/revolution (16x1024x4096) and is implemented as SinCos Hiperface. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 70 mm. The drive shaft has a diameter of 11 mm. The shaft end is smooth and compliant with protection class IP54. The motor housing meets protection class IP65. There is no holding brake. For operating the synchronous motor, the servo amplifiers from the Lexium LXM32 series are recommended. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
