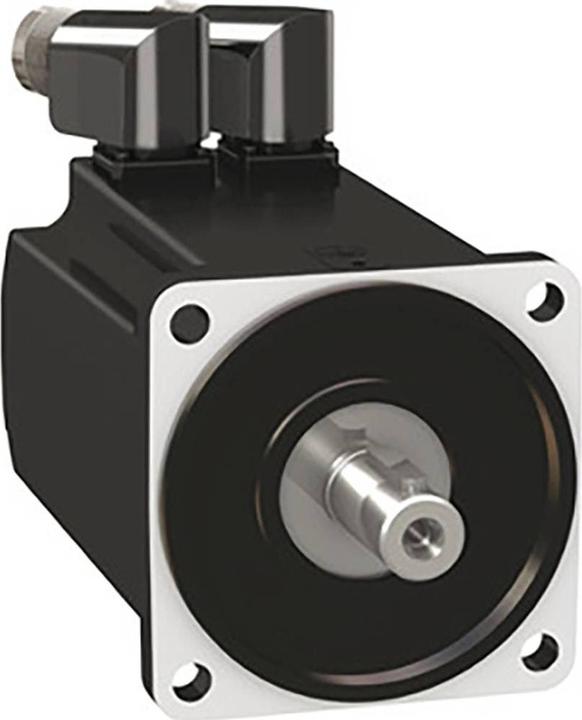

BMH servomotor from the Lexium 32 series of servo drives. The BMH series of three-phase AC servomotors features a medium rotor inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, it achieves a very high power density in a compact design. This servo has a nominal continuous stall torque of 3.4 Nm and reaches a peak torque of 10.2 Nm. Its rated speed can go up to 4000 rpm, depending on the supply voltage. This results in a voltage-dependent rated power of up to 1200 W. The built-in encoder is a single-turn type with 16 periods/revolution (16x1024) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 100 mm. The drive shaft has a diameter of 19 mm. The shaft end is smooth and conforms to protection class IP54. The motor housing meets protection class IP65. There is no holding brake. For operating the synchronous motor, the servo amplifiers from the Lexium LXM32 series are recommended. Thanks to the Green Premium environmental label, you can obtain detailed information about material contents, environmental impacts, and circular economy that support your sustainability goals.
