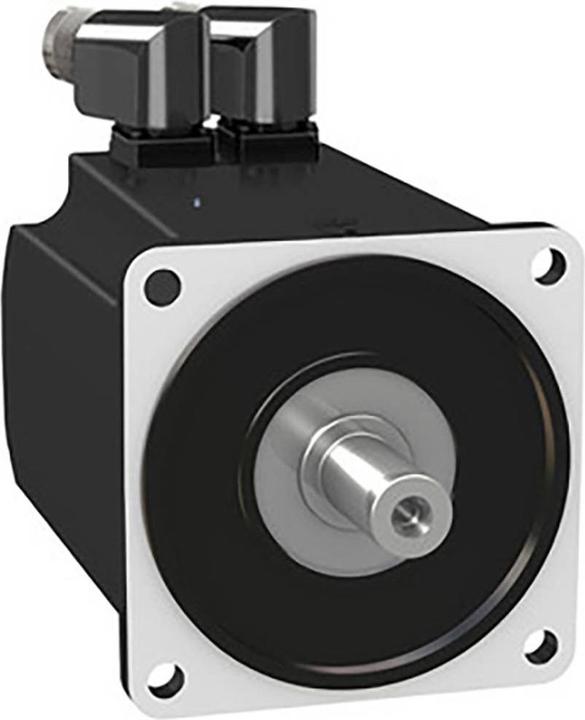

BMH servomotor from the Lexium 32 series of servo drives. The BMH series of three-phase AC servomotors features a medium rotor inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, it achieves a very high power density in a compact design. This servo has a nominal continuous stall torque of 16.8 Nm and reaches a peak torque of 50.4 Nm. Its rated speed can reach up to 3000 RPM, depending on the supply voltage. The voltage-dependent rated power can be up to 3550 W. The built-in encoder is a single-turn type with 16 pulses per revolution (16x1024) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange has a mounting diameter of 140 mm. The drive shaft has a diameter of 24 mm. The shaft end is smooth and complies with protection class IP54. The motor housing meets protection class IP65. An integrated holding brake is included. For the operation of the synchronous motor, the servo amplifiers from the Lexium LXM32 series are recommended. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
