Output torque max. = 1.4 Nm
Output speed = 9000 rpm
Power = 300 W
Holding torque = 0.5 Nm
Length = 94.5 mm
Width = 55 mm
Depth = 132.5 mm
Dimensions = 94.5 x 55 x 132.5 mm

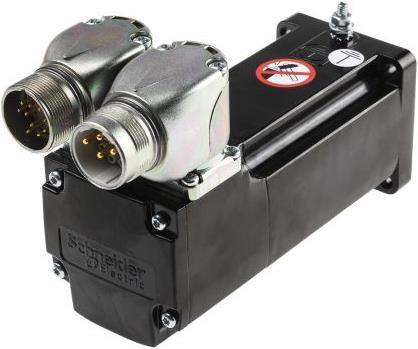

The specified height was measured from the motor base to the top edge of the connector. BSH servo motors are compact and dynamic, making them suitable for use with Lexium 05 servo drives. With the SinCos Hiperface encoder, the parameters of the connected motor can be read directly. Various motor windings are available to cover multiple rated speed ranges. The motor is equipped with 90-degree connectors that can be rotated 300 degrees for easier installation. You can find the corresponding motors in the selection table.
