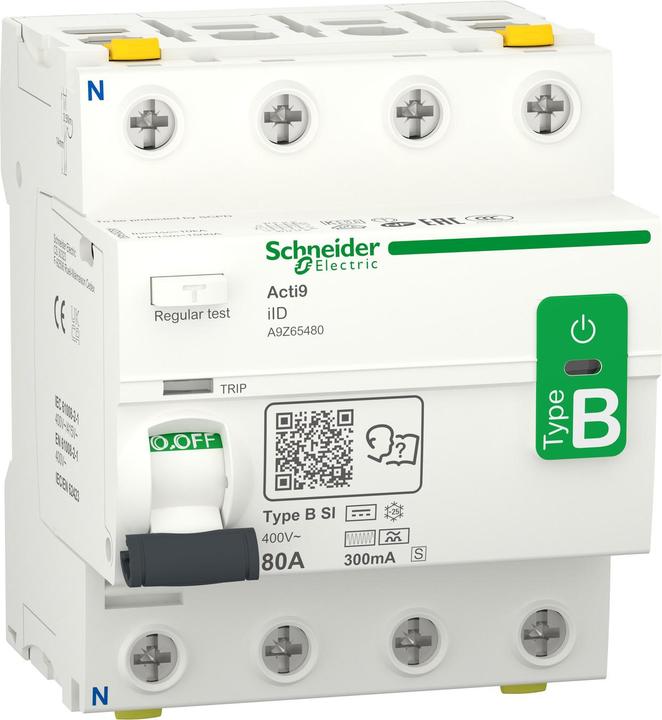

Schneider Electric A9Z65480 IID 4P 80A 300MA S TYPE B-SI Earth-leakage circuit breaker all-current sensitive
7 items ordered
Product details
The A9Z65480 IID 4P 80A 300mA Type B-SI RCD from Schneider Electric is a highly advanced residual current device specifically designed for use in electrical installations. With a rated current of 80A and a rated residual current of 300mA, this device provides a reliable solution for protection against electrical faults. The Type B-SI features a selective tripping characteristic that ensures increased resilience against electrical disturbances, making it particularly suitable for applications utilizing frequency converters, inverters, or uninterruptible power supplies. The RCD is 4-pole and complies with relevant standards, underscoring its safety and reliability. Additionally, it includes a mechanical fault indication (VisiTrip) and a safe contact indication (VisiSafe), allowing for easy verification of the device's status. Installation is straightforward on a DIN rail, facilitating both installation and maintenance.
- Mechanical fault indication (VisiTrip) to display tripping due to residual current
- Safe contact indication (VisiSafe) to ensure voltage-free status
- Double connection terminals for dual-sided connection of cables or busbars
- Easy removal of the individual device when a busbar is installed
- Additional snap-on auxiliary modules for extended functions.
Circuit breaker type | Fault current circuit breaker |
Mounting type | Top-hat rail |
number of poles | 4 |
Length | 44 mm |
Item number | 31991096 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer No. | A9Z65480 |
Release date | 24.10.2022 |
External links |
Colour | White |
Exact colour description | RAL 9003 |
Circuit breaker type | Fault current circuit breaker |
Mounting type | Top-hat rail |
number of poles | 4 |
Tripping characteristic | B |
Rated current | 80 A |
Rated current | 0.3 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.30 A |
Protection type (IP code) | IP20 |
Country of origin | Spain |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 18,08 kg |
Climate contribution | EUR 0,44 |
Items per sales unit | 1 pcs. |
Length | 44 mm |
