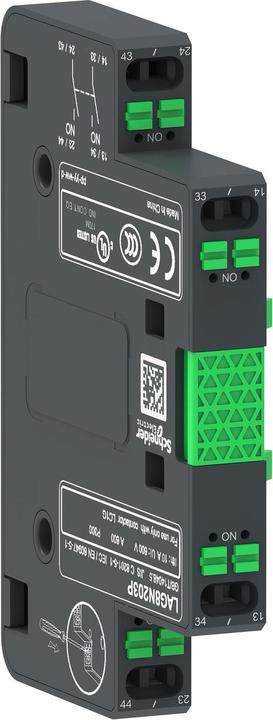

Schneider Electric Auxiliary Contact Block 2nd Row LAG8N203P

Manufacturer: Schneider Electric
Designation: Auxiliary Contact Block 2nd Row TeSys Giga Contactor
Type: LAG8N203P
Number of contacts as normally open: 2
Rated operational current Ie at AC-15, 230 V: 10 A
Type of electrical connection: Spring terminal connection
Design: Integrable
Mounting type: Side mounting
Base: Without

The Schneider Electric Auxiliary Contact Block 2nd Row LAG8N203P is a TeSys auxiliary switch block for TeSys Control - Giga power contactors with two normally open contacts. The switching contacts ensure reliable signal transmission at a minimum of 17 V / 1 mA, making it ideal for inputs on PCs or controllers with very low load capacity. The auxiliary contacts are mounted laterally to the existing auxiliary contact for contact expansion and feature maintenance-friendly push-in terminals. The auxiliary contact block has an IP20 protection rating according to IEC 60529 and is Green Premium compliant (RoHS/REACH).
