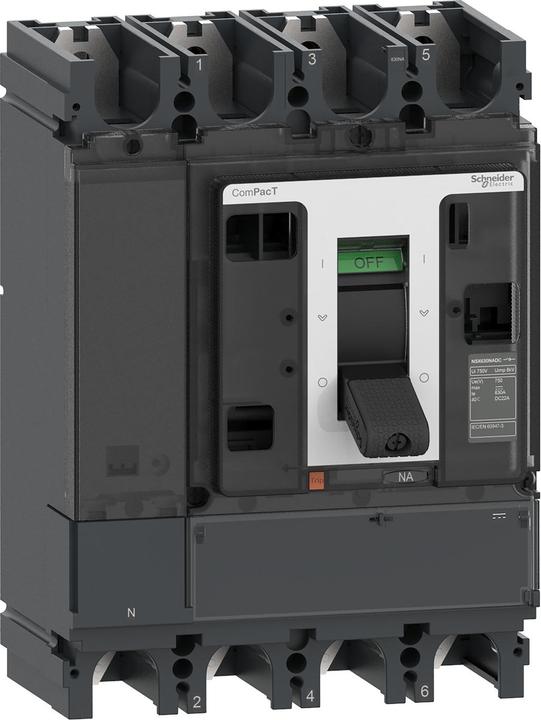

Schneider Electric Load Break Switch ComPacT C634630DS

Manufacturer: Schneider Electric
Designation: Load Break Switch ComPacT NSX630NA, DC, 630 A
Type: C634630DS
Configured as Main Switch: yes
Configured as Maintenance/Repair Switch: yes
Configured as Safety Switch: no
Configured as Emergency Stop Device: no
Configured as Reversing Switch: no
Number of Switches: 1
Max Rated Operating Voltage Ue for AC: 750 V
Rated Operating Voltage: 750 V
Rated Continuous Current Iu: 630 A
Rated Continuous Current for AC-23, 400 V: 630 A
Rated Continuous Current for AC-21, 400 V: 630 A
Rated Short-Time Current Icw: 7.5 kA
Number of Poles: 4
Number of Auxiliary Contacts as Changeover: 5
Motor Drive Optional: yes
Motor Drive Integrated: no
Voltage Release Optional: yes
Device Type: Built-in Device Fixed Installation Technology
Suitable for Floor Mounting: yes
Suitable for Front Mounting 4-Hole: yes
Suitable for Central Front Mounting: no
Suitable for Panel Installation: yes
Suitable for Intermediate Installation: no
Color of Operating Element: black
Design of Operating Element: Knob
Lockable: yes
Connection Type Main Circuit: Screw Connection
Protection Class (IP), front side: IP20

The ComPacT NSX630NA DC is a complete disconnect switch with 4 poles. It is used to control and isolate power distribution circuits. A preceding protection is required for this purpose. The operating current is 630 A at 750 VDC for usage categories DC-22 A. The operating voltage is 750 VDC. It is equipped with a range of optional features and accessories that can be used with the ComPacT NSX circuit breakers. The dimensions are 185 mm x 255 mm x 110 mm (H x W x D). It complies with international standards (IEC 60947), CCC, and EAC specifications.
