Number and position of contacts: 3-pole
Current max: 5.6 A
Voltage max: 690 V AC
Number of positions: 2
Connection type: Screw mounting
Switching angle: 90°
Length: 78 mm
Width: 45 mm
Depth: 110.5 mm
Actuator type: Handle, with detent
Dimensions: 78 x 45 x 110.5 mm

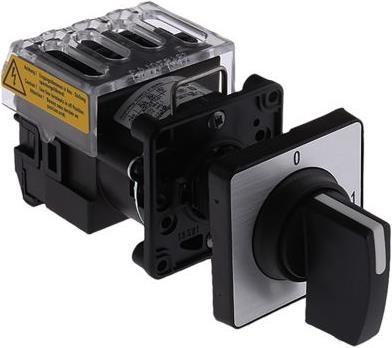

Cam switch for industrial use. Suitable for control circuits (EN60947-5-1) or power circuits (EN60947-3). IP65 single-hole mounting, 22 mm diameter touch-proof terminals. Operating temperature: -25°C to +55°C. Slow-opening contacts with positive break. Thermal rating: 12 A free air, 10 A with enclosure. Rated voltage: 230 V; 400 V.
