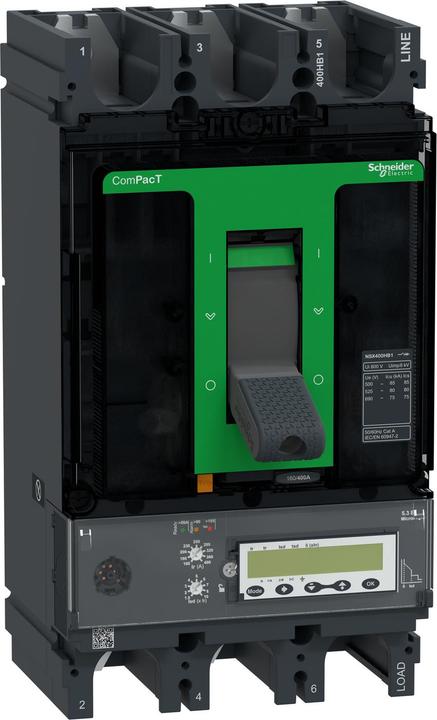

Schneider Electric Compact Circuit Breaker C40V35E400

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSX400HB1
Type: C40V35E400
Rated Continuous Current Iu: 400 A
Rated Voltage: 690 V
Overload Relay Current Setting: 160..400 A
Short-Circuit Protection Setting Range (Time-Delayed): 600..4000 A
Short-Circuit Protection Setting Range (Instantaneous): 600..6000 A
Integrated Earth Fault Protection: no
Connection Type for Main Circuit: Screw Connection
Device Design: Built-in Device Fixed Installation
Suitable for DIN Rail Mounting: no
DIN Rail Mounting Optional: no
With Trip Indicator: no
Number of Poles: 3
Position of Connection for Main Circuit: Front
Actuator Design: Knob
Complete Device with Protection Unit: yes
Integrated Motor Drive: no
Optional Motor Drive: yes
Protection Class (IP): IP40

Additional Details:
The ComPacT NSX400HB1 is a complete 3P 3d circuit breaker for fixed installation, designed to optimize space requirements and tripping capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 85 kA effective at 500 VAC 50/60 Hz and 75 kA effective at 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features an electronic release device MicroLogic 5.3 E with a rated current of 400 A. The MicroLogic 5.3 E provides adjustable long-time, short-time, and instantaneous protection. It includes an integrated display for fine-tuning and energy meter display. This 3-pole version (140 mm x 255 mm x 110 mm) comes with a variety of optional features and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. The ComPacT NSX400HB1 is part of Schneider Electric's EcoStruxure Power architecture.
