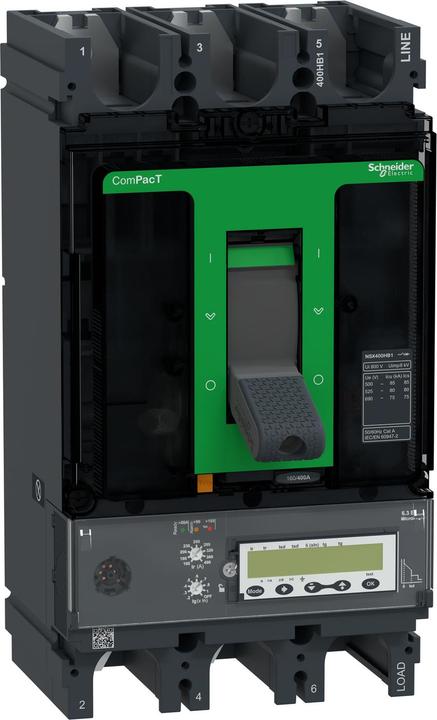

Schneider Electric moulded-case circuit-breaker C40V36E400

Manufacturer: Schneider Electric
Designation: Moulded-case circuit-breaker ComPacT NSX400HB1
Type: C40V36E400
Rated continuous current Iu: 400 A
Rated voltage: 690 V
Overload release current setting: 160 to 400 A
Setting range of the short-time delayed short-circuit release: 600 to 4000 A
Setting range of the instantaneous short-circuit release: 600 to 6000 A
Integrated earth fault protection: No
Connection type main circuit: Screw connection
Device type: Built-in device
Fixed installation technology suitable for top-hat rail mounting: No
Top-hat rail mounting optional: No
With trip indicator: No
Number of poles: 3
Position of connection for main circuit: Front
Actuator design: Knob
Complete device with protection unit: Yes
Motor-drive unit integrated: No
Motor-drive unit optional: Yes
Protection class (IP): IP40

Schneider Electric C40V36E400 moulded-case circuit-breaker: more details
This ComPacT NSX400HB1 is a complete 3P 3d fixed-mounting circuit-breaker designed to optimise space requirements and breaking capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 85 kA rms at 500 VAC 50/60 Hz and 75 kA rms at 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product has a MicroLogic 6.3 E electronic tripping device with a rated output of 400 A and adjustable earth fault protection (with OFF position). The MicroLogic 6.3 E trip unit offers adjustable long-time, short-time and instantaneous protection. MicroLogic 6.3 E has an integrated display for fine adjustment and display of the energy meter. This 3-pole version (140 mm x 255 mm x 110 mm) comes with a wide range of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB1 is part of Schneider Electric's EcoStruxure Power architecture.
