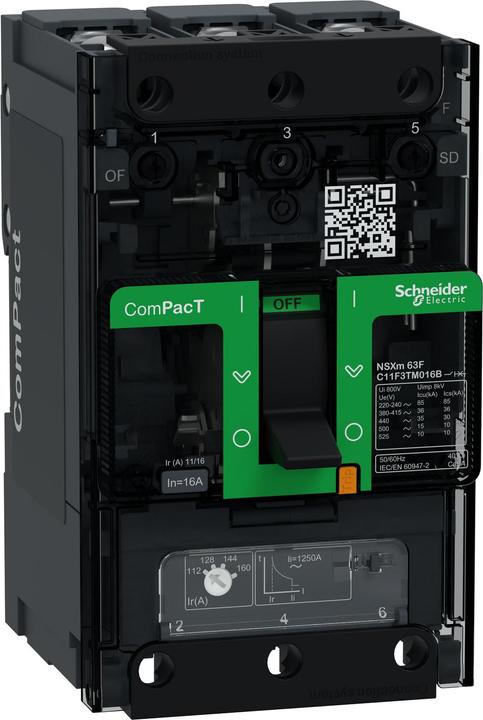

Schneider Electric moulded-case circuit-breaker C11F3TM016B

Manufacturer: Schneider Electric
Designation: ComPacT NSXm 16 A moulded-case circuit-breaker
Type: C11F3TM016B
Rated continuous current Iu: 16 A
Rated voltage: 690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz: 36 kA
Overload release current setting: 11.2 to 16 A
Setting range of the instantaneous short-circuit release: 500 A
Integrated earth fault protection: No
Connection type main circuit: Screw connection
Device type: Built-in device
Fixed installation technology: Yes
Suitable for top hat rail mounting: Yes
Top hat rail mounting optional: No
With trip indicator: Yes
Number of poles: 3
Position of the connection for main circuit: Front
Actuator design: Toggle
Complete device with protection unit: Yes
Integrated motor-drive unit: No
Optional motor-drive unit: No
Protection class (IP): IP40

Further details: This is a compact ComPacT NSXm circuit-breaker, 16 A, 36 kA at 415 VAC, for all low voltage standard applications. It offers new functions such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring-type accessories that are externally visible. ComPacT NSXm is one of the smallest moulded case circuit breakers available on the market, measuring 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with an integrated thermo-magnetic tripping device. It ensures conformity with international standards and marine specifications.
