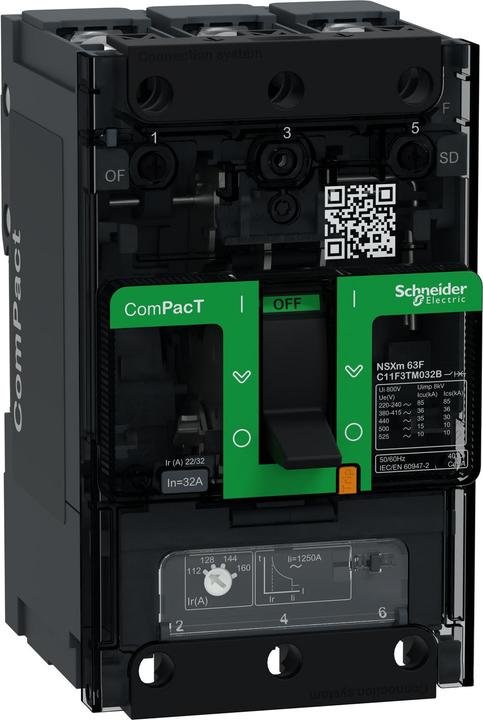

Schneider Electric moulded-case circuit-breaker C11F3TM032B

Manufacturer: Schneider Electric
Designation: ComPacT NSXm 32 A moulded-case circuit-breaker
Type: C11F3TM032B
Rated continuous current Iu: 32 A
Rated voltage: 690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz: 36 kA
Overload release current setting: 22.4 to 32 A
Setting range of the instantaneous short-circuit release: 600 A
Integrated earth fault protection: No
Connection type main circuit: Screw connection
Device type: Built-in device
Fixed installation technology: Yes
Suitable for top-hat rail mounting: Yes
Top-hat rail mounting optional: No
With trip indicator: Yes
Number of poles: 3
Position of connection for main circuit: Front
Actuator design: Toggle
Complete device with protection unit: Yes
Integrated motor-drive unit: No
Optional motor-drive unit: No
Protection class (IP): IP40

Further details: This is a compact ComPacT NSXm circuit-breaker, 32 A, 36 kA at 415 VAC, for all low voltage standard applications. It offers new functions such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring-type accessories that are externally visible. ComPacT NSXm is one of the smallest moulded case circuit breakers available on the market, measuring 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with an integrated thermo-magnetic tripping device. It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.
