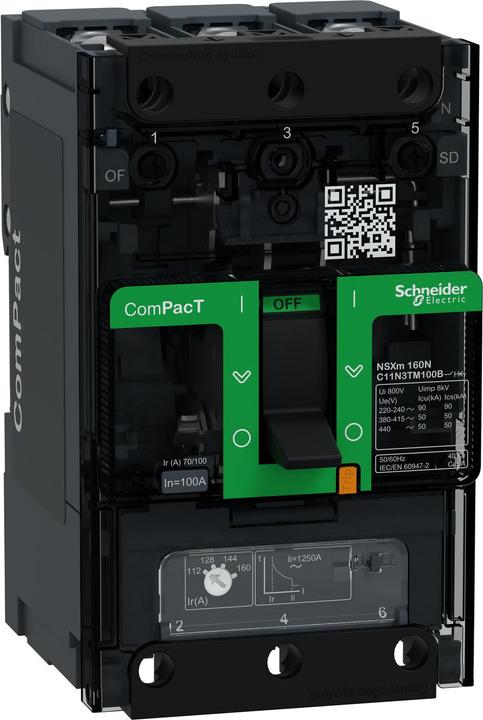

Schneider Electric moulded case circuit-breaker C11N3TM100B

Manufacturer: Schneider Electric
Designation: Moulded case circuit-breaker ComPacT NSXm 100 A
Type: C11N3TM100B
Rated continuous current Iu: 100 A
Rated voltage: 690 V
Rated limit short-circuit breaking current Icu at 400 V, 50 Hz: 50 kA
Overload release current setting: 70 to 100 A
Setting range of the instantaneous short-circuit release: 1250 A
Integrated earth fault protection: No
Connection type main circuit: Screw connection
Device type: Built-in device
Fixed installation technology: Yes
Suitable for top-hat rail mounting: Yes
Top-hat rail mounting optional: No
With trip indicator: Yes
Number of poles: 3
Position of connection for main circuit: Front
Actuator design: Toggle
Complete device with protection unit: Yes
Integrated motor-drive unit: No
Optional motor-drive unit: No
Protection class (IP): IP40

This is a compact ComPacT NSXm circuit-breaker, 100 A, 50 kA at 415 VAC, for all low voltage standard applications. It offers new functions such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring-type accessories that are externally visible. ComPacT NSXm is one of the smallest moulded case circuit breakers available on the market, measuring 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with an integrated thermo-magnetic tripping device. It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.
