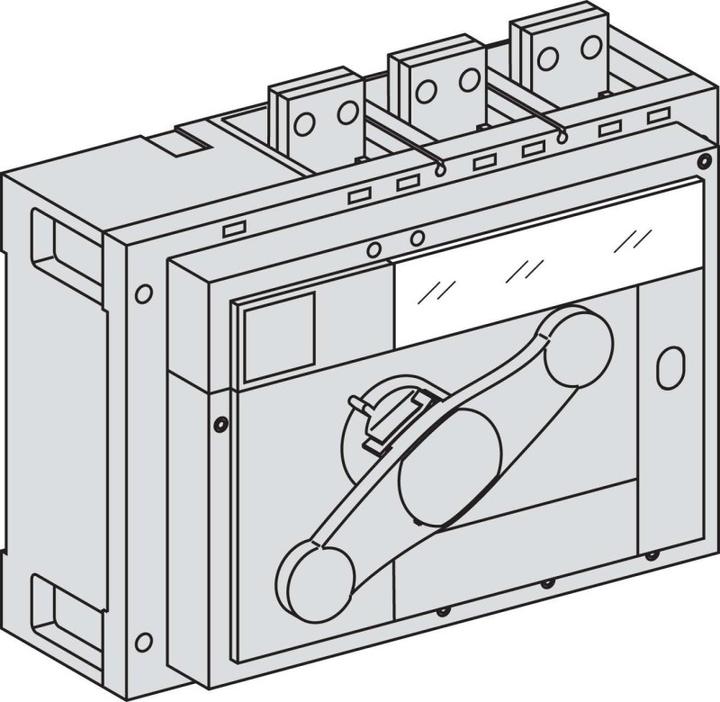

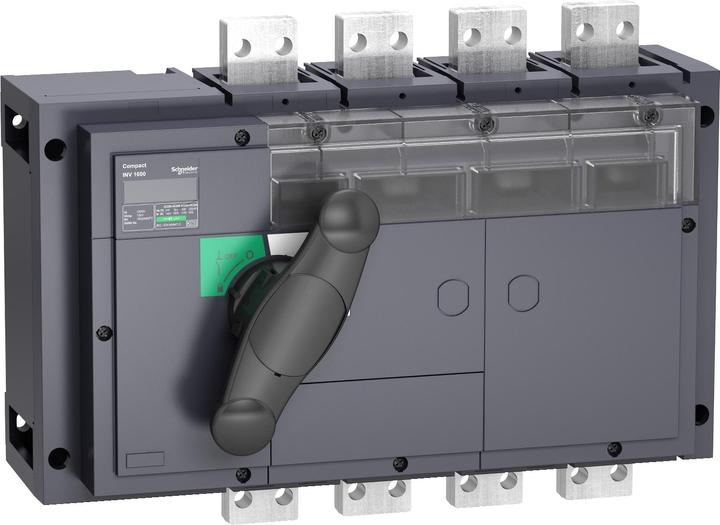

Schneider Electric Disconnect Switch 31359

Manufacturer: Schneider Electric
Designation: 4-pole disconnect switch
Type: 31359
Configured as main switch: yes
Configured as maintenance/repair switch: yes
Configured as safety switch: no
Configured as emergency stop device: no
Configured as reversing switch: no
Number of switches: 1
Max rated operational voltage Ue for AC: 690 V
Rated operational voltage: 690 V
Rated continuous current Iu: 800 A
Rated continuous current for AC-23, 400 V: 800 A
Rated continuous current for AC-21, 400 V: 800 A
Rated short-time current withstand Icw: 50 kA
Rated operational power for AC-23, 400 V: 400 kW
Conditional rated short-circuit current Iq: 100 kA
Number of poles: 4
Number of auxiliary contacts as changeover: 4
Motor drive optional: no
Integrated motor drive: no
Voltage release optional: no
Device design: Built-in device with fixed installation technology
Suitable for floor mounting: yes
Suitable for front mounting 4-hole: yes
Suitable for central front mounting: yes
Suitable for panel installation: yes
Suitable for intermediate mounting: no
Color of the operating element: black
Design of the operating element: long rotary handle
Lockable: yes
Connection type main circuit: screw connection
Protection class (IP), front side: IP40

The ComPact INS and INV switches are load disconnect switches with rotary drive. All ComPact INS/INV load disconnect switches are suitable for disconnection as defined in the standards IEC 60947-1 and 3. The mechanical design of the ComPact switches ensures that the position of the drive always reflects the position of the main switch. The disconnect position corresponds to the O (OFF) position. The actuated drive cannot indicate the OFF position when the switch is open. Locking in the OFF position is not possible when the switch is open. Usage categories AC21A, AC22A, and AC23A.
EAN: 3303430313595.
