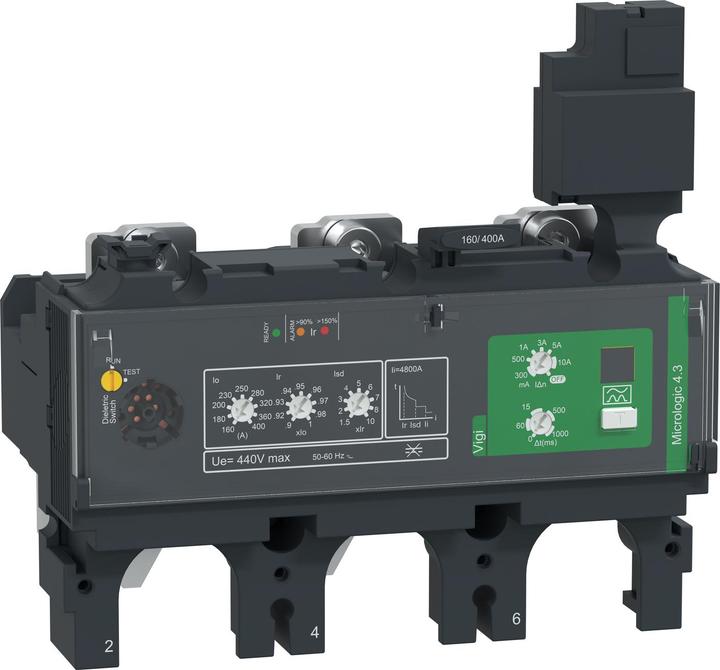

Schneider Electric Electronic Release Device C4034V400

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 4.3
Type: C4034V400
Overload Release Current Setting: 160 - 400 A
Initial Value of Undelayed Short-Circuit Release Setting Range: 4800 A
Final Value of Undelayed Short-Circuit Release Setting Range: 4800 A
Rated Continuous Current Iu: 400 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 440 V
Rated Control Supply Voltage Us at AC 60 Hz: 440 V
Number of Poles: 3
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Release

Further Details:
This MicroLogic 4.3 is a 3-pole electronic release device used in ComPacT NSX 400/630 circuit breakers. This electronic release device, with a rated current of 400 A, is the best choice for all standard and special applications. It features customizable long-time overload protection. Additionally, it offers customizable short-time protection and a fixed undelayed short-circuit protection. The MicroLogic 4.3 Vigi release device provides integrated, adjustable residual current protection. MicroLogic 4.3 indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. A pre-alarm for residual current can be made available remotely by installing the optional SDx module. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX. EAN: 3606481994196.
