Schneider Electric Electronic Trip Unit C6335Z630

Manufacturer: Schneider Electric

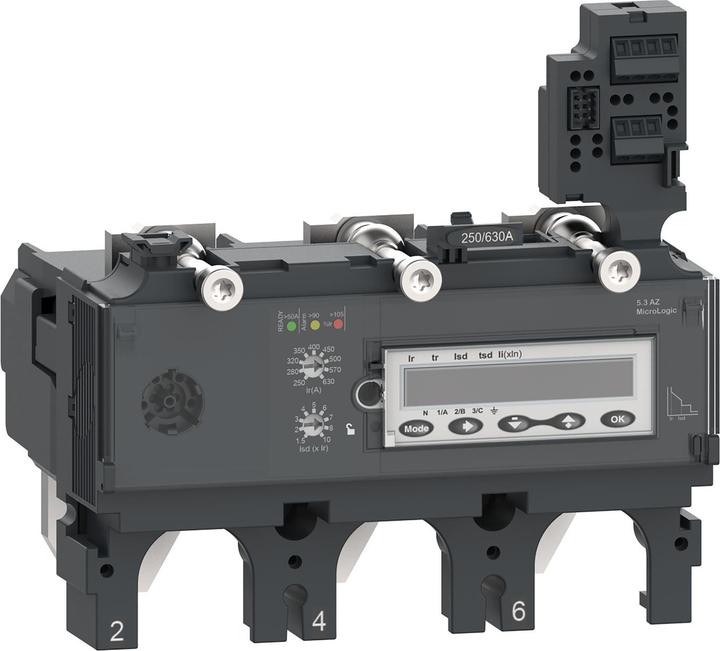

Designation: Electronic Trip Unit MicroLogic 5.3AZ
Type: C6335Z630
Overload Trip Current Setting: 250-630 A
Initial Value of the Instantaneous Short-Circuit Trip Setting Range: 945 A
Final Value of the Instantaneous Short-Circuit Trip Setting Range: 6930 A
Rated Continuous Current Iu: 630 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 3
Short-Circuit Trip Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Trip

Schneider Electric Electronic Trip Unit C6335Z630: Additional Details
This electronic 3-pole 3d trip unit MicroLogic 5.3 A-Z is an electronic trip device used in the ComPacT NSX 630 circuit breakers. This electronic trip unit with a rated current of 630 A is utilized in specialized 2/3 distribution systems with 16 Hz for railway applications. It features customizable long-time overload protection. Additionally, it offers customizable short-time delayed short-circuit protection and instantaneous short-circuit protection. The MicroLogic 5.3 A-Z indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. The MicroLogic 5.3 A-Z is equipped with a display module that provides current measurements and allows fine-tuning. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
