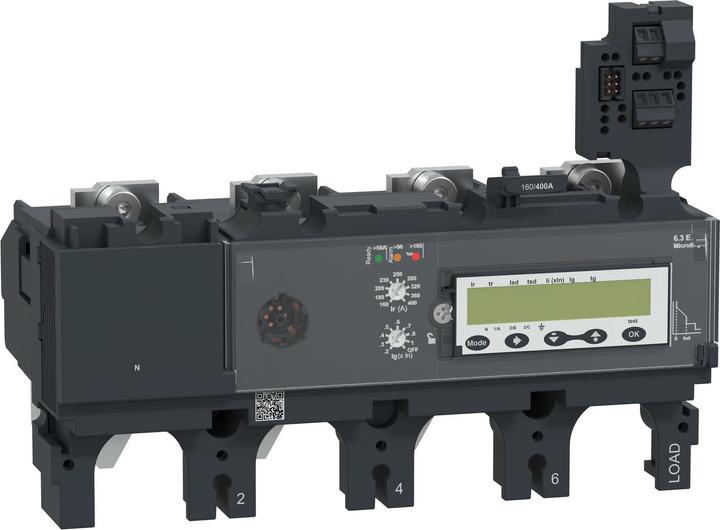

Schneider Electric Electronic Release Device C4046E400

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 6.3E
Type: C4046E400
Overload Release Current Setting: 160 - 400 A
Initial Value of the Undelayed Short-Circuit Release Setting Range: 600 A
Final Value of the Undelayed Short-Circuit Release Setting Range: 4800 A
Rated Continuous Current Iu: 400 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 4
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: Yes
Motor Protection Type: Electronic Release

This electronic 4-pole 4d release device MicroLogic 6.3 E is an electronic release device used in the ComPacT NSX 400/630 circuit breakers. This electronic release device with a rated current of 400 A is the best choice for all standard and special applications. It features an adjustable long-time overload protection as well as adjustable short-time delayed short-circuit protection and un-delayed short-circuit protection. Additionally, it offers an extra and adjustable earth fault protection. MicroLogic 6.3 E indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. MicroLogic 6.3 E is equipped with a display module that allows energy measurements and fine adjustments. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
