Number of doors: 1
IP protection class: IP55
Series: Spacial SM
Door type: Opaque
Construction type: Welded
Housing material: Steel
Color: Grey
Outer dimensions: 1800 x 1000 x 400 mm
Outer depth: 400 mm
Exterior height: 1800 mm
Width outside: 1000 mm

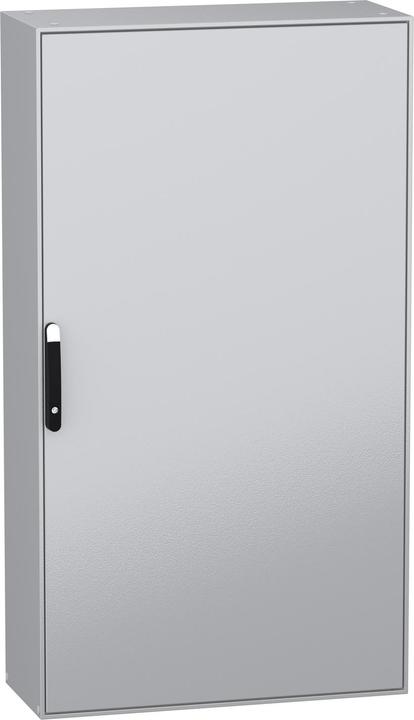

Spacial SM monobloc control cabinet. The Spacial SM compact metal enclosure consists of a compact housing, welded rear panel, and front panel, forming a robust frame with welded corners. Monobloc cabinets are made of sheet steel. Four brackets adjustable in depth in 25 mm increments, two on the bottom and two on the roof, allow for adjusting the equipment supports. The door is made of sheet steel with a textured powder coating (epoxy/polyester) in gray (RAL7035). The reinforcing frame consists of two perforated mounting rails with a hole spacing of 25 mm and two door stays (adjustable in height), which can be used to fix cables. It features a standard lock with handle and 5 mm double-bit lock, and is equipped with a galvanized mounting plate and four brackets. The two-piece cable entry plate has an IP55 rating according to IEC 60529 and IK10 rating according to IEC 62262. Approvals include BV, DNV, UL, and cUL.
