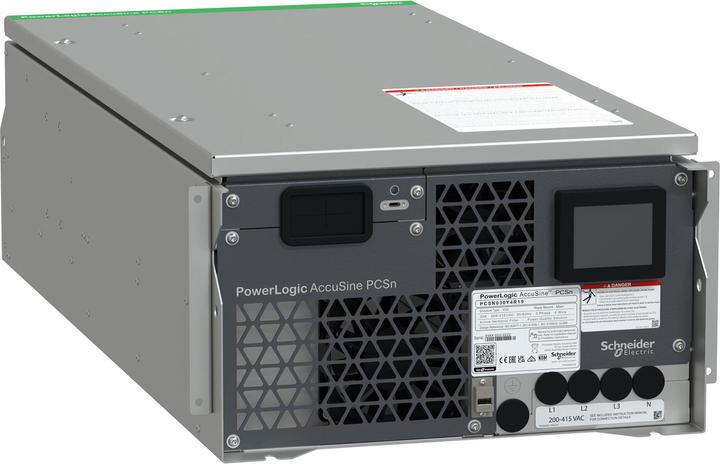

Schneider Electric Energy management controller Power quality PCSN030Y4R19
Product details
Active harmonic filter from the AccuSine family, designed to stabilize electrical networks by reducing harmonics, correcting the power factor, and enabling load balancing. In addition to compensating for three-phase harmonic currents, it can also compensate for the harmonic currents of the neutral conductor. This version has an IP20 protection rating and can be connected to low-voltage networks with a voltage range of 208 volts to 415 volts. It is specified for a standard output current of 30 amperes and a neutral conductor of 90 amperes. The housing is a 19-inch rack, allows for front cable entry, and is delivered in RAL7035 light gray, compatible with the NetShelter SX. This active network filter achieves a performance THDi of less than or equal to 3%, exceeding standard requirements, and is certified according to CE, IBC 2015, EAC, RCM, and designed according to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1, and IEEE 519-2014. Up to 12 devices can be connected in parallel per current transformer set, and any combination of devices is possible (depending on network characteristics). It is master-capable. The external dimensions of the housing are 440 millimeters in width, 960 millimeters in depth, 265 millimeters in height, and the product weight is 61 kg.
Item number | 33632360 |
Manufacturer | Schneider Electric |
Category | Drive technology accessories |
Manufacturer no. | PCSN030Y4R19 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | RAL7035 light grey |
Country of origin | India |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 96 cm |
Width | 44 cm |
Height | 26.40 cm |
Weight | 61000 g |
