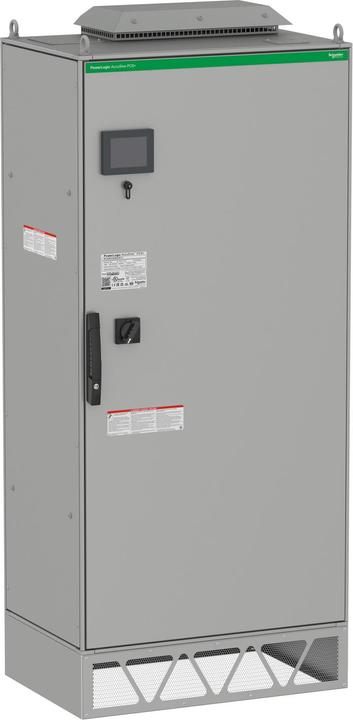

Schneider Electric Energy management controller Power quality PCSP200D5IP31
Product details
Active harmonic filter from the AccuSine family, designed to stabilize electrical networks by reducing harmonics, correcting the reactive power factor, and enabling load balancing. It is specifically engineered for demanding electrical conditions, heavy industrial applications, and critical environments. This version has an IP31 protection rating and can be connected to low-voltage networks with a voltage of 380 volts to 480 volts. It is specified for a standard output current of 200 amperes. The housing is floor-standing, allows for cable entry from the top or bottom, and is delivered in RAL7035 light gray. This active network filter achieves a performance THDi of less than or equal to 3%, exceeding standard requirements, and is certified according to CE, UL, IBC 2015 AC156, EAC, RCM. It complies with IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508, and IEEE 519-2014. Up to 10 devices of different power ratings can be connected in parallel to achieve a maximum compensation of 3000A per current transformer set. The external dimensions of the housing are 900 millimeters in width, 600 millimeters in depth, 2100 millimeters in height, and the product weight is 384 kg.
