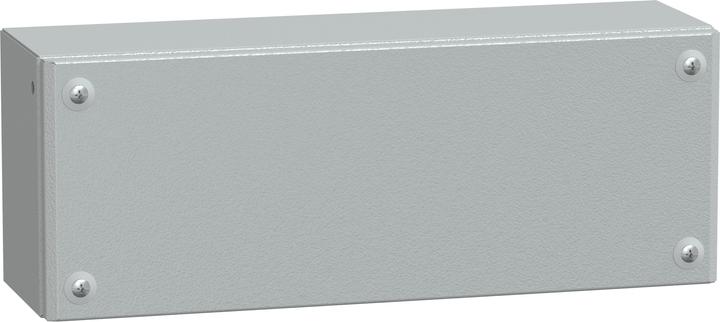

Height outside: 150 mm
Outer width: 400 mm
Outer depth: 120 mm
Outer dimensions: 150 x 400 x 120 mm
Housing material: Steel
Transparent door: No
IP protection class: IP66
Chassis plate: No
Shielding plate: No
Color: Gray
Series: Spacial SBM
Mounting kit: No
Outdoor mounting type: Bracket

Three profiles for width 800 mm, two for bus box (three screws for width greater than 400 mm), and four for flat and access boxes (six screws for width greater than 400 mm). Spacial SBM industrial boxes from Schneider Electric are available in three versions and are designed for use in industrial machinery and building applications. The wall-mount enclosures feature a one-piece rectangular body with seamed channels on the front and two or three drilled profiles for installing mounting plates and DIN rails on the back, with mounting holes measuring 12.5 mm in diameter. The enclosure cover includes a polyurethane gasket and two, three, four, or six threaded half-turn screws, depending on the version. An M6 x 16 ground connection stud is welded into the cover to provide a potential connection terminal for the enclosure.

Features and benefits include 28 different sizes available, with accessories from the expansion box allowing for up to 42 sizes. Depths of 80 mm and 120 mm are available, with or without pre-installed FL21 cable entries. The enclosures offer IP66 protection, meaning they are dust-tight and provide protection against strong water jets and heavy seas. They have external mechanical impact resistance of up to IK10 (20 joules), which means the wall box can withstand a 5 kg object dropped from a height of 40 cm. They can be installed with a screwdriver, with direct mounting from the back or using external mounting lugs. The enclosures are protected inside and out by gray (RAL 7035) painted polyester, featuring an attractive and robust design to protect sensitive electronics.

Typical applications for Schneider's Spacial SDB series include underground garages, road, and railroad tunnels.
