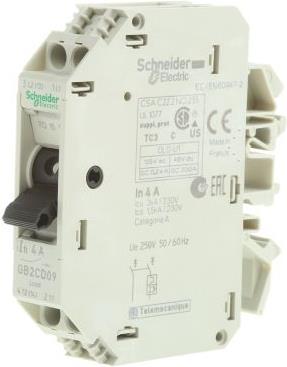

Schneider Electric Miniature Circuit Breaker 1pole + N
Only 4 pieces in stock at supplier
Product details
Schneider Electric Circuit Breaker GB2CD09
Manufacturer: Schneider Electric
Designation: Circuit Breaker 2p. 4.0A with auxiliary switch
Type: GB2CD09
Installation Depth: 74 mm
Tripping Characteristic: other
Total Number of Poles: 2
Number of Protected Poles: 1
Rated Current: 4 A
Rated Voltage: 250 V
Rated Insulation Voltage Ui: 250 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icu according to IEC 60947-2 at 230 V: 3 kA
Frequency: 50..60 Hz
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: yes
Overvoltage Category: 3
Pollution Degree: 2
Additional Devices Possible: no
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature during Operation: -20..60 °C
Connectable Conductor Cross-section Multi-stranded: 0.75..4 mm²
Connectable Conductor Cross-section Single-stranded: 0.75..6 mm²
Explosion Protected: no
The Schneider Electric Circuit Breaker GB2CD09 is a TeSys GB circuit breaker, 2-pole (1P+N), 4A/250V IEC/277V UL, designed for the protection of control circuits in industrial installations. It offers thermal-magnetic protection with a magnetic tripping value of 52A (13 In) and a switching capacity of Icu 3kA@240V. It can also be used for the protection of DC loads up to 4A/48V DC-13 with a switching capacity of Icu 1.5kA@24V. The compact device is 30mm wide, mounts on a 35mm DIN rail, and can be controlled via a toggle switch (start-stop guaranteed for 8000 cycles). It is sold in packs of 3 units and is certified according to several standards (IEC, UL, CSA) as well as being a Green Premium product (RoHS/REACh).
Circuit breaker type | Circuit breaker |
number of poles | 1 |
Length | 74 mm |
Width | 15 mm |
Item number | 10313817 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer No. | GB2CD09 |
Release date | 15.1.2019 |
Circuit breaker type | Circuit breaker |
number of poles | 1 |
Rated voltage | 250 V |
voltage type | AC |
Insulation voltage (Ui) | 250 V |
Protection type (IP code) | IP20 |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 18,08 kg |
Climate contribution | EUR 0,44 |
Items per sales unit | 1 pcs. |
Length | 74 mm |
Width | 15 mm |
