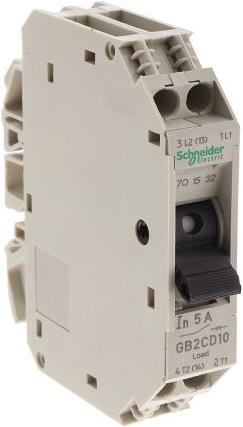

Schneider Electric Miniature Circuit Breaker 1pole + N

Ratings
BrandMore from Schneider Electric
Currently out of stock
Free shipping starting at 30,–

Product details

Schneider Electric Circuit Breaker GB2CD10

Manufacturer: Schneider Electric
Description: Circuit breaker 2p, 5.0A with auxiliary contact
Type: GB2CD10
Installation depth: 74 mm
Tripping characteristic: Other
Number of poles (total): 2
Number of protected poles: 1
Rated current: 5 A
Rated voltage: 250 V
Rated insulation voltage Ui: 250 V
Rated impulse voltage withstand Uimp: 4 kV
Type of voltage: AC
Rated breaking capacity Icu according to IEC 60947-2 at 230 V: 2 kA
Frequency: 50-60 Hz
Energy limitation class: 3
Flush mounting: No
Switching neutral conductor: Yes
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: No
Width in division units: 1
Protection class (IP): IP20
Ambient temperature during operation: -20 to 60 °C
Connectable conductor cross-section multi-stranded: 0.75 to 4 mm²
Connectable conductor cross-section single-stranded: 0.75 to 6 mm²
Explosion-proof: No

Schneider Electric Circuit Breaker GB2CD10: Additional details
TeSys GB circuit breaker, 2-pole (1P+N), 5A/250V IEC/277V UL, for the protection of control circuits in industrial plants. It features thermal magnetic protection with a magnetic tripping value of 66A (13 In) and a breaking capacity Icu of 2kA at 240V. It can also be used for the protection of DC loads up to 5A/48V DC-13 with a breaking capacity Icu of 1.5kA at 24V. Compact device (30mm wide), mounted on 35mm DIN rail, controlled via toggle switch (start-stop guaranteed for 8000 cycles). Sold in batches of 3 units. Certified according to several standards (IEC, UL, CSA), Green Premium product (RoHS/REACh).

Key specifications

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
1
Length
74 mm
Width
15 mm

General information

Item number
10313818
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer No.
GB2CD10
Release date
15.1.2019

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
1
Rated voltage
250 V
voltage type
AC
Insulation voltage (Ui)
250 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
74 mm
Width
15 mm
