TeSys Range
Operating Voltage: 690V AC
Width: 55mm
Series: GV3
Breaking Capacity: 5 kA

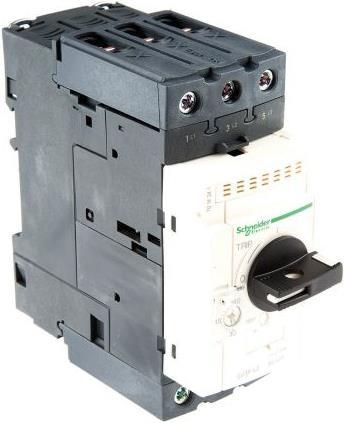

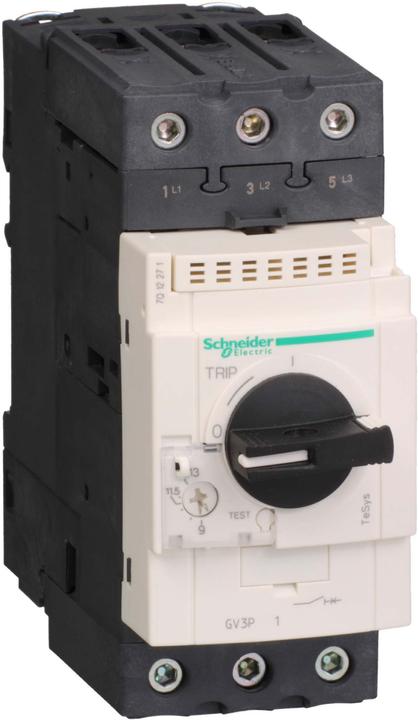

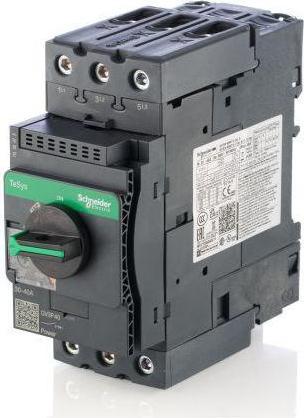

Certified according to IEC 947 and UL 508 Type E. Motor circuit breaker - GV3P. Thanks to its new power supply connections, the GV3 circuit breaker range ensures improved connection reliability. It is designed to maintain a constant clamping force, guaranteeing a secure and lasting connection even in very demanding environments. Thermal-magnetic circuit breakers provide control and protection for motors ranging from 5.5 kW to 30 kW. Product version with ring terminal, developed for the Asian market and specific applications. High breaking current: 50 kA/400 V from 40 to 65 A and 100 kA/400 V from 9 to 32 A. 3-position, lockable, rotary knob. Test button for trip on the front. Sealable cover to protect the thermal setting. Protection class IP65.
