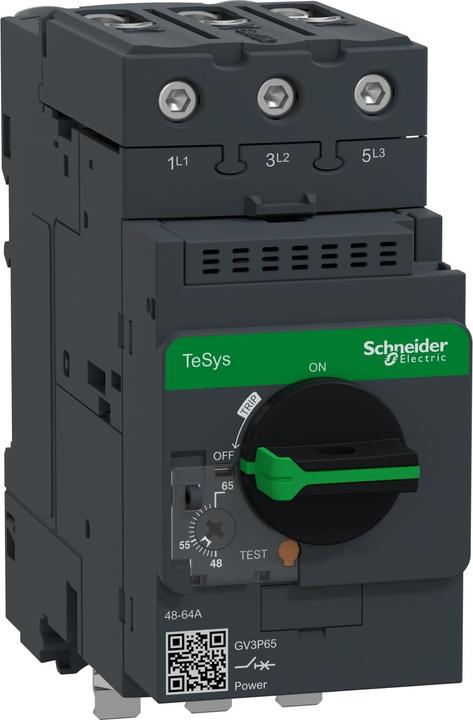

Schneider Electric motor-protective circuit-breaker GV3P651

Manufacturer: Schneider Electric
Designation: Motor-protective circuit-breaker 48-65A
Type: GV3P651
Overload release current setting: 48-65 A
Setting range of the instantaneous short-circuit release: 910 A
With thermal protection: Yes
Phase loss sensitive: Yes
Tripping technology: Thermomagnetic
Rated operational voltage: 0-690 V
Rated uninterrupted current Iu: 65 A
Rated operating power at AC-3, 230 V: 18.5 kW
Rated operating power at AC-3, 400 V: 30 kW
Connection type main circuit: Screw connection
Design of operating element: Rotary knob
Unit design: Complete unit in enclosure
With integrated auxiliary contact: No
With integrated undervoltage release: No
Number of poles: 3
Rated short-circuit breaking current Icu at 400 V, AC: 50 kA
Protection class (IP): IP20
Height: 111 mm
Width: 55 mm
Depth: 136 mm

Schneider Electric motor-protective circuit-breaker GV3P651: further details
Motor-protective circuit-breaker up to 30 kW. With its new and patented Everlink terminal strip system, the TeSys GV3 motor-protective circuit-breaker offers an even more stable and reliable connection quality. The clamping pressure on the cables remains stable, strong, and continuously safe, even under difficult conditions. Common accessories to the GV2 and GV3 series offer significant simplification and clear time savings during installation.
