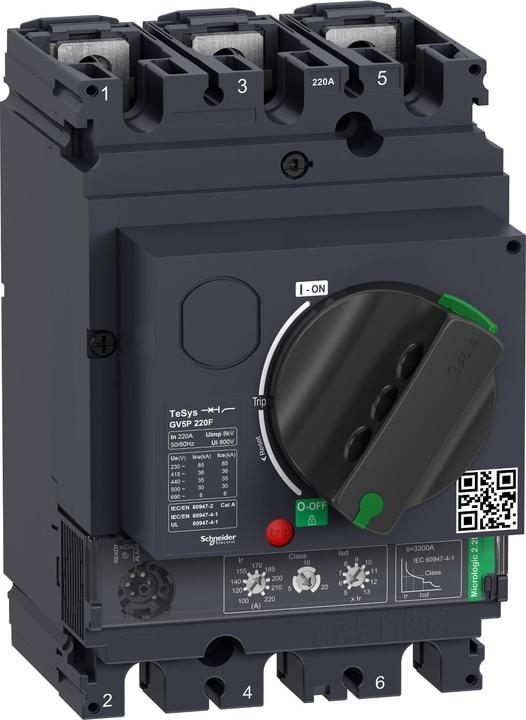

Schneider Electric motor-protective circuit-breaker GV5P220F

Manufacturer: Schneider Electric
Designation: Motor-protective circuit-breaker 3P, 220A, Icu 36kA
Type: GV5P220F
Overload release current setting: 100-220 A
Setting range of instantaneous short-circuit release: 220 A
With thermal protection: Yes
Phase loss sensitive: Yes
Tripping technology: Thermomagnetic
Rated operational voltage: 0-690 V
Rated uninterrupted current Iu: 220 A
Rated operational power at AC-3, 230 V: 90 kW
Rated operational power at AC-3, 400 V: 132 kW
Connection type main circuit: Screw connection
Design of actuating element: Rotary knob
Unit design: Complete unit in enclosure
With integrated auxiliary switch: No
With integrated undervoltage release: No
Number of poles: 3
Rated short-circuit breaking current Icu at 400 V, AC: 36 kA
Protection class (IP): IP40
Height: 161 mm
Width: 105 mm
Depth: 155 mm

Schneider Electric GV5P220F motor-protective circuit-breaker: further details
TeSys GV motor-protective circuit-breaker, 3 poles (3P), 220A/690V, for the protection of 3-phase motors 90-110kW at 400V. It offers thermal magnetic protection and additional protection functions, switching capacity Icu 36kA, start-stop control by rotary handle. Furthermore, it also offers connection for bars or cables with cable lugs (direct connection of cables with additional plugs). Thermal protection adjustable by dials with a setting current Ir in the range 100-220A and a selectable tripping class 5, 10 or 20, magnetic protection at 15 In. Additional protection functions with fixed tap are short-time delay protection Isd at 13 Ir, phase unbalance and failure protection. It provides internal locations for additional auxiliary contact blocks (OF, SD) and voltage releases (MN, MX). Certified to several standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
