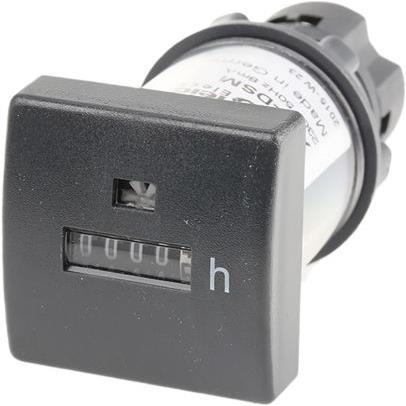

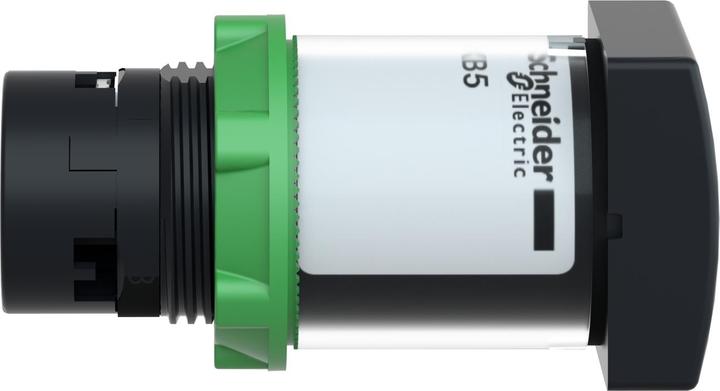

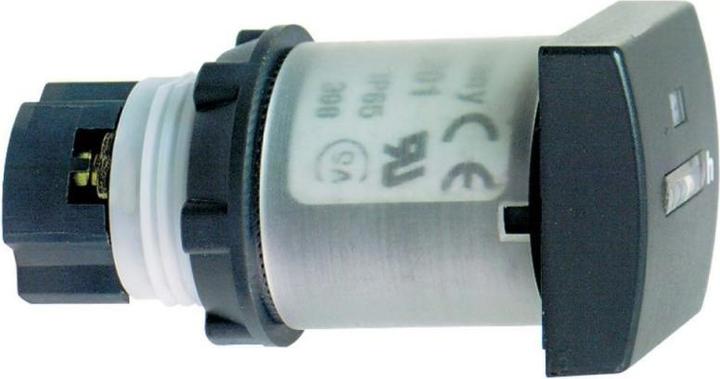

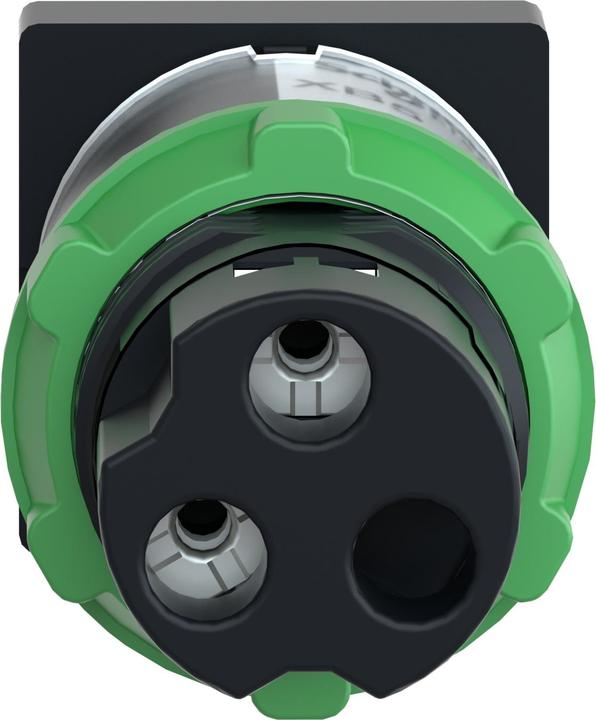

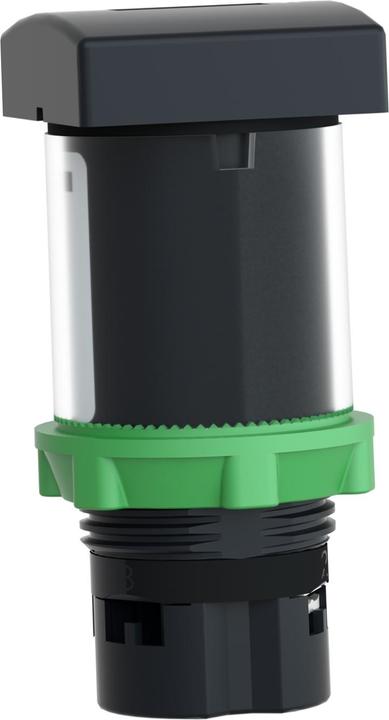

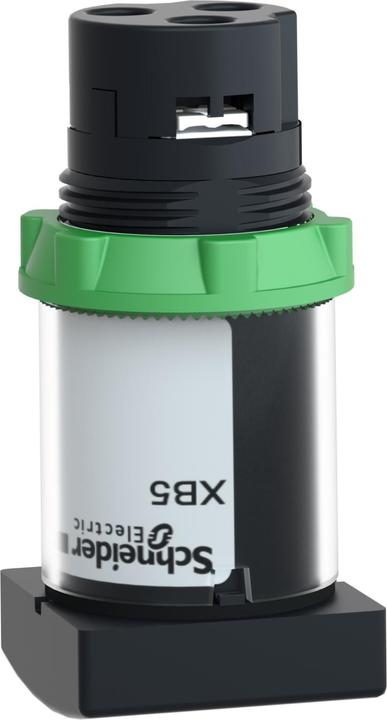

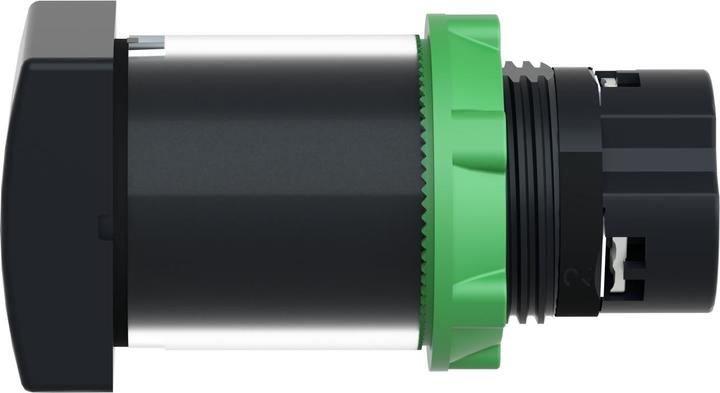

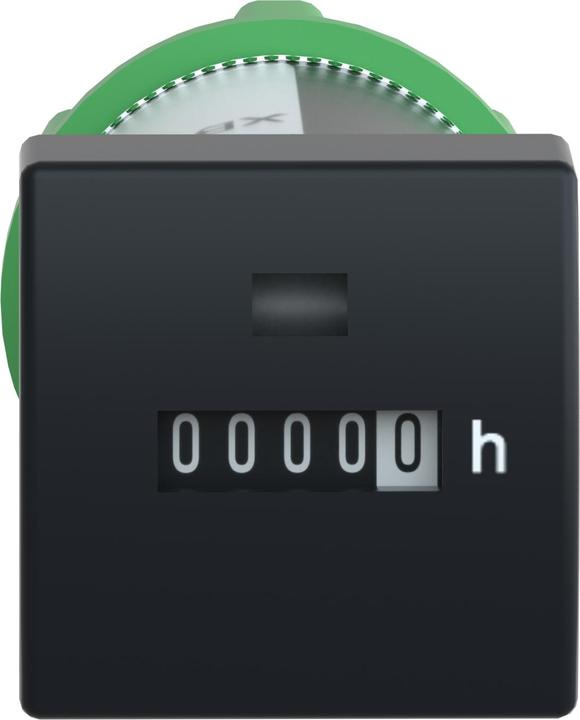

Schneider Electric Operating Hour Counter XB5DSM

Manufacturer: Schneider Electric
Designation: Operating hour counter 230/240V
Type: XB5DSM
Mounting type: Surface and front mounting
Execution: Digital
Counting range: 9999 h
Reset function: None
Running display: Yes
Number of digits: 5
Input voltage: 230..240 V
Voltage type: AC/DC
Frequency of input voltage: 50 Hz
Drive type: Net synchronous
Width: 30 mm
Height: 30 mm
Installation depth: 60 mm
Front panel width: 30 mm
Front panel height: 30 mm
Front mounting cutout diameter: 22.5 mm
Mounting up to max. wall thickness: 6 mm
Protection class (IP): IP65
Protection class (NEMA): Other

The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness, these devices are ideal for most applications in industry and buildings. Mounted in a 22mm hole, the connection of the device is made via screw terminals on the back of the product. This operating hour counter features a 5-digit display without a reset function. The supply voltage is 230V AC. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
