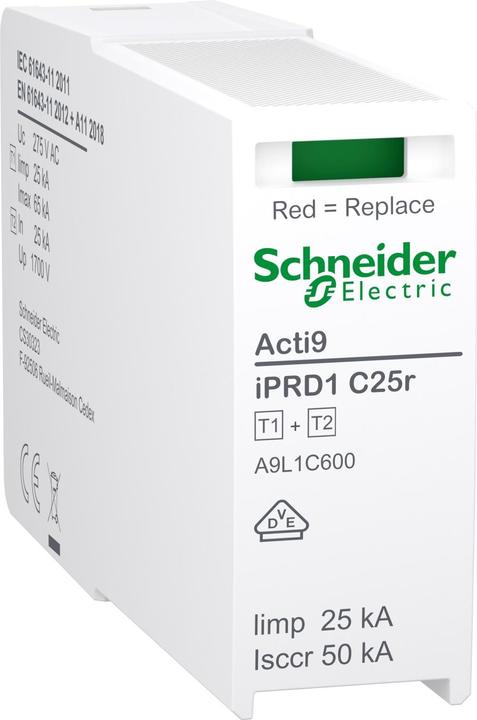

The replacement protection module from Schneider Electric is a highly advanced surge protection device specifically designed for use in combination surge protectors of type iPRD1 C25r 3P+N. It provides effective protection against surges and is suitable for a nominal voltage of 240 V AC (50/60 Hz). With a maximum discharge surge current capacity of 65 kA and a nominal discharge surge current of 25 kA, this module ensures reliable performance in critical applications. The integrated optical function and fault indicator allows for easy monitoring of the device's status, with a green light indicating proper operation and a red light signaling a fault. The module is designed for an operating temperature range of -40 to +85 degrees Celsius and complies with the standards IEC 61643-11:2011 and EN 61643-11:2012, underscoring its reliability and safety.

• Optical function and fault indicator (green/red)
• Maximum discharge surge current of 65 kA
• Operating temperature range of -40 to +85 degrees Celsius
• Mounting type: DIN rail
• Protection class IP20.
