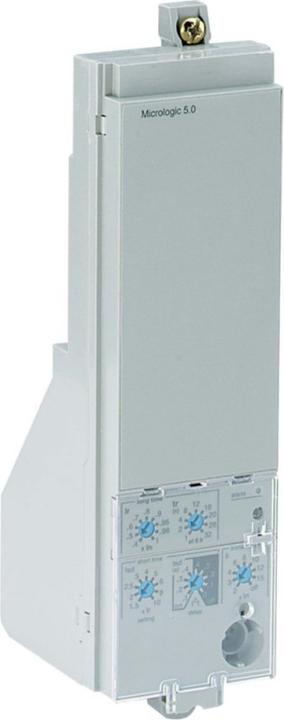

Schneider Electric Release System 33504

Manufacturer: Schneider Electric
Designation: Release System 3p
Type: 33504
Overload release current setting: 252..3200 A
Starting value of the instantaneous short-circuit release setting range: 378 A
Ending value of the instantaneous short-circuit release setting range: 32000 A
Number of poles: 4
Short-circuit release function: delayed

Schneider Electric Release System 33504: further details

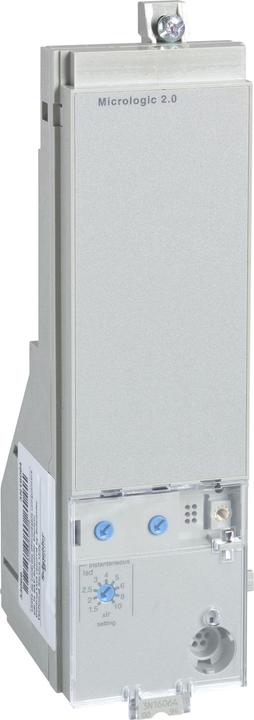

Micrologic 2.0 is an electronic release device used in circuit breakers of the Compact series NS630b to NS3200. The release device features basic protection and is designed for the protection of circuits and loads. It offers an adjustable long-time protection against overload and an adjustable instantaneous protection against short-circuit currents. Micrologic 2.0 indicates overloads with an alarm LED. This release device can be assigned to a basic frame of the Compact NS.
