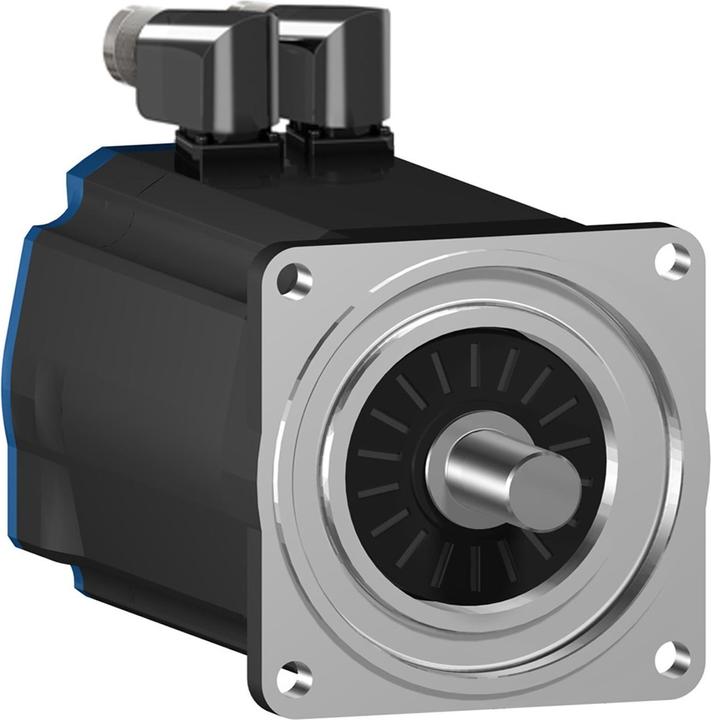

BSH servomotor from the Lexium 32 series of servo drives. This BSH series of three-phase AC servomotors features low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 8.0 Nm and reaches a peak torque of 28.3 Nm. Its nominal speed can reach up to 4800 RPM, depending on the supply voltage. The voltage-dependent nominal power can be up to 2560 W. The built-in encoder is a single-turn type with 128 periods/revolution (128x1024) in SinCos Hiperface format. Electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 100 mm. The drive shaft has a diameter of 19 mm. The shaft end is equipped with a key and conforms to protection class IP65. The motor housing also meets protection class IP65. A holding brake is integrated. For the operation of the synchronous motor, the Lexium series LXM32 servo amplifiers are recommended. Thanks to the Green Premium environmental label, you can access detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
