Phase: 3
Supply Voltage: 200 to 480 V
Rated Current: 32 A
Operating Voltage: 480 V
Control Voltage: 24 Vdc
Power: 15 kW
Protection Class: IP20
Overall Length: 113 mm
Overall Width: 45 mm
Overall Depth: 154 mm
Minimum Operating Temperature: -10 °C
Maximum Operating Temperature: +40 °C
Series: ATSU01

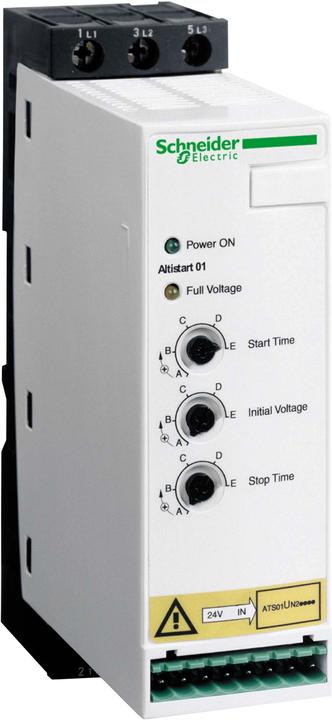

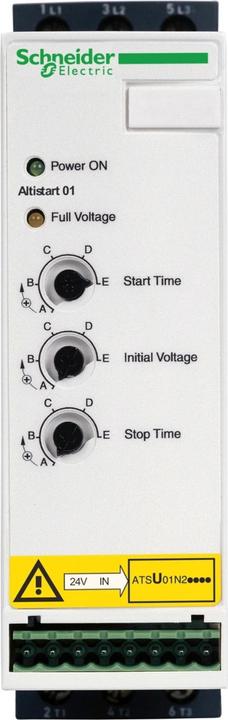

The Altistart U01 is a unit with soft start and soft stop for asynchronous motors. It is primarily designed for combinations with the TeSys Model U control device and starters. When combined with a TeSys Model U, the Altistart U01 serves as a power supply option that provides the "Soft Start/Soft Stop" function. The result is a unique, innovative motor starter. By using the Altistart U01 starter, the starting performance of asynchronous motors is improved by starting the motor slowly, smoothly, and in a controlled manner. Two phases of motor power supply can be controlled to limit the starting current and to decelerate the motor. It features an internal bypass relay. Motor rated power: 0.75 kW to 15 kW. Motor supply voltages: 200 to 480 V, 50/60 Hz. An external 24 V power supply is required for controlling the starter.
