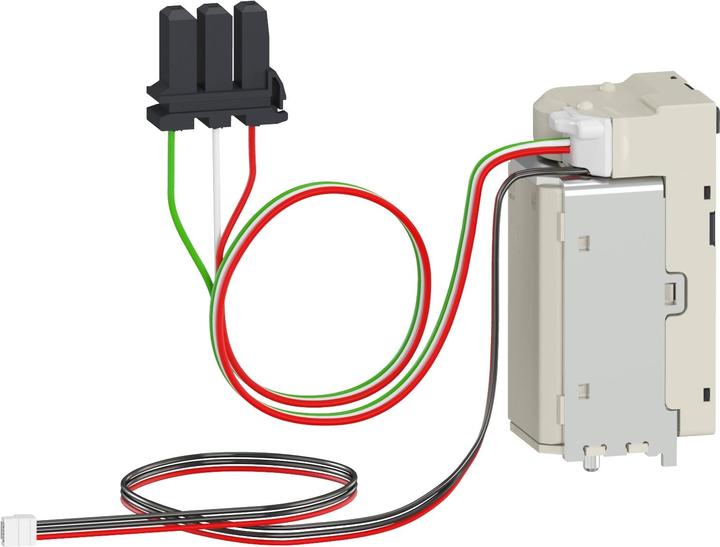

Schneider Electric Disconnect Coil LV833033SP

Manufacturer: Schneider Electric
Description: Disconnect coil MXdiag 24/30V DC, 24 VAC
Type: LV833033SP
Nominal control supply voltage Us at AC 50 Hz: 24 V
Nominal control supply voltage Us at AC 60 Hz: 24 V
Nominal control supply voltage Us at DC: 24...30 V
Type of voltage for actuation: AC/DC
Type of electrical connection: Terminal connection
Suitable for circuit breakers: Yes
Suitable for load switches: Yes
Suitable for motor protection circuit breakers: No
Suitable for overload relays: No

This opening coil is used for the immediate remote tripping of the MasterPact MTZ circuit breaker. In combination with a closing coil XF and a motor drive MCH, the MasterPact can be operated remotely. The tripping occurs immediately via Modbus communication. The tripping coil contains a diagnostic circuit that can be accessed through Modbus communication. Immediate voltage release MX/XF diag&com 24/30V DC, 24V AC MasterPact MTZ spare part. This tripping coil can be ordered separately as a spare part for the closing coil XF and the disconnect coil MX.
