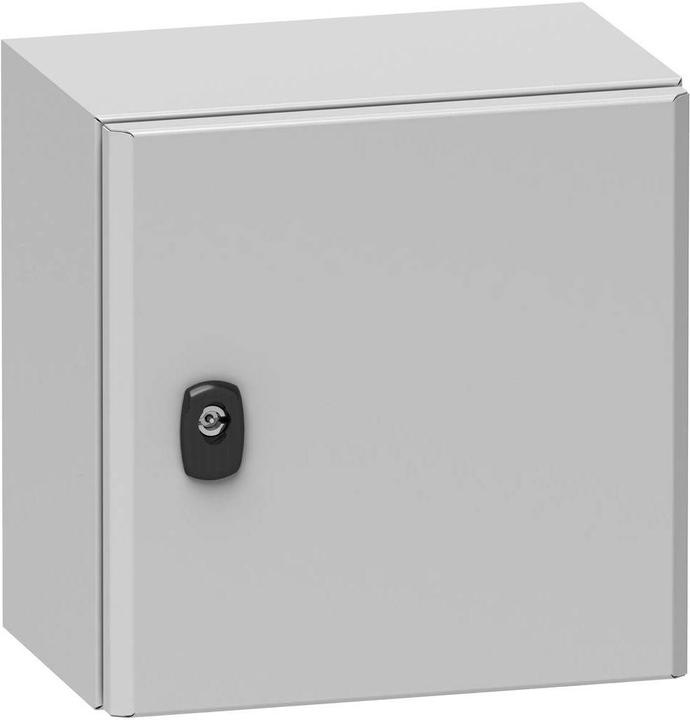

Schneider Electric Wall Cabinet RAL 7035 NSYS3D3420P

Manufacturer: Schneider Electric
Designation: Wall Cabinet RAL 7035
Type: NSYS3D3420P
Width: 400 mm
Height: 300 mm
Depth: 200 mm
Material: Steel
Material Quality: Other
Surface Finish: Powder-coated
Color: Gray
RAL Number: 7035
Free-standing: No
Floor-standing Wall Model: No
Suitable for Wall Mounting: Yes
Corner Model: No
Intermediate Installation: No
Coupleable: No
With Mounting Plate: Yes
Mounting Plate Depth Adjustable: No
Suitable for Wall Installation: No
Mast Mounting: Yes
Number of Doors: 1
Number of Locks: 1
Suitable for Metric Installation: Yes
Suitable for Outdoor Installation: Yes
Sloped Roof: No
EMC Version: No
With Viewing Door: No
With Ventilation Door: No
With Rear Door: No
Impact Resistance: IK10
Protection Class (IP): IP66
Protection Class (NEMA): 4X
Max. Permissible Load of the Enclosure/Cabinet according to IEC 62208: 250 N
Max. Permissible Load of the Door(s) according to IEC 62208: 50 N
Max. Permissible Load of the Mounting Plate according to IEC 62208: 250 N

Schneider Electric Wall Cabinet RAL 7035 NSYS3D3420P: Additional Details
Spacial S3D wall enclosure made of steel with full door. Dimensions: 300 x 400 x 250 mm. One-piece enclosure, including mounting plate. 3-point locking system with handle and 3 mm double-bit lock. Made of steel, epoxy-polyester powder coating. Protection class IP 66, IK10, color RAL 7035.
