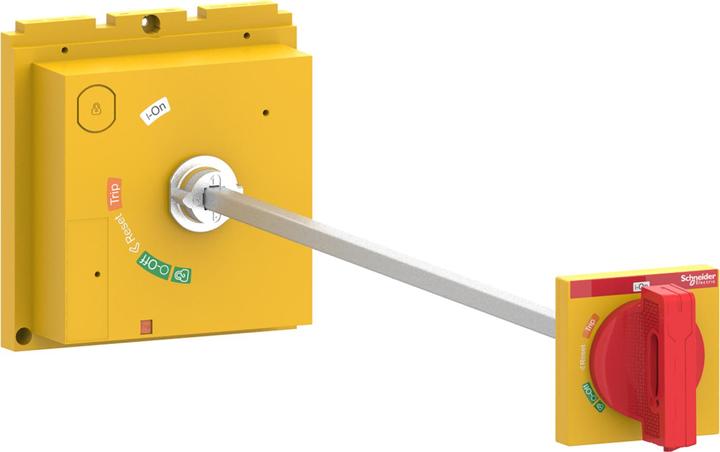

Schneider Electric Rotary drive with LV432600T Manufacturer :Schneider Electric Designation :Rotary drive with door coupling for ComP Type :LV432600T With axle extension :yes With door interlock :no Lockable :yes With handle red/yellow :yes Schneider Electric rotary drive with LV432600T: further details This is a rotary drive with door coupling for the ComPacT NSX 400/630 and PowerPact Multistandard L assemblies. It is suitable for galvanic isolation and is used for standard applications. It retains access to the release unit settings and to the release button. It is equipped with a red handle on the yellow front. There is an indication of the three unit positions O (OFF), I (ON) and triggered. This extended version enables the operation of devices mounted at the rear of the switchgear from the front of the switchgear. The distance between the rear of the circuit-breaker and the switchgear door is between 185 mm and 600 mm. The degrees of protection are IP55 and IK08. This rotary actuator can be locked in the OFF position with 1 to 3 padlocks (shackle diameter 5 to 8 mm). Optionally, it is possible to install a Ronis or Profalux key switch on the underside of the handle to obtain the same function as with a padlock. , EAN: 3606482004139.
