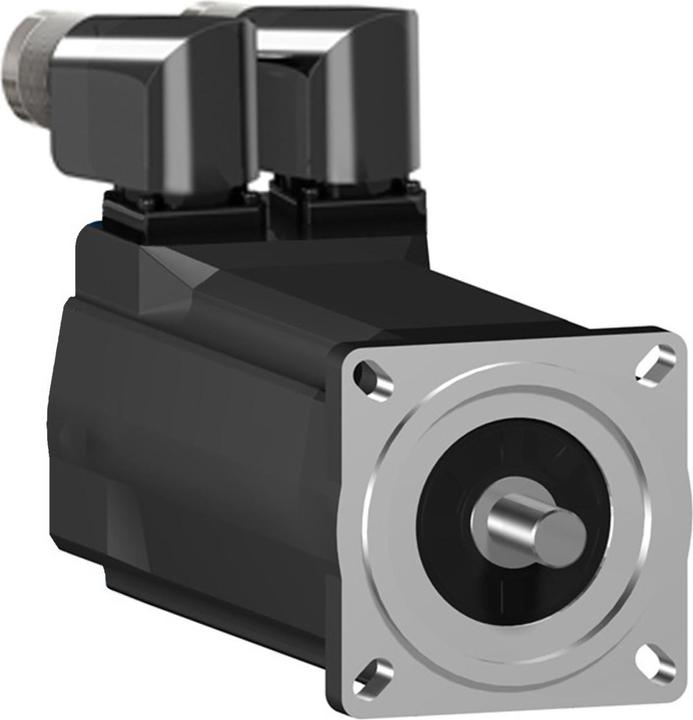

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 3.1 Nm and achieves a peak torque of 11.3 Nm. Its rated speed can reach up to 7200 RPM, depending on the supply voltage. The voltage-dependent rated power can be up to 1550 W. The built-in encoder is a multiturn type with 128 periods/revolution (128x1024x4096) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 70 mm. The drive shaft has a diameter of 14 mm. The shaft end is equipped with a key and meets the protection class IP65. The motor housing complies with protection class IP67. An integrated holding brake is included. For operating the synchronous motor, the Lexium series servo amplifiers Lexium 52 and Lexium 62 are recommended.
